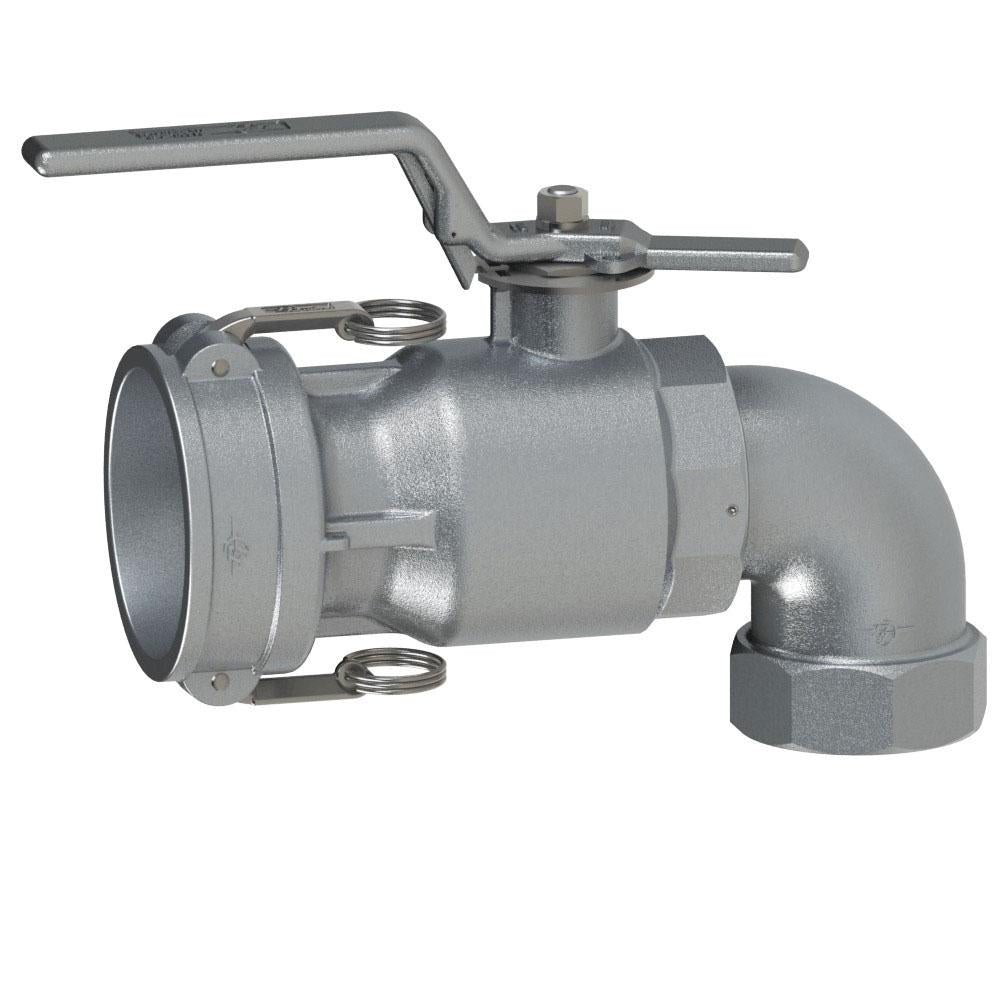

40000300SV (MD30DSW) by PT-Coupling | MAXI-DRY® Dry Disconnect Coupler | Type MDD90 | 90° Swivel Elbow | 3" Coupler x 3" Female NPT | Aluminum | Viton Seal
PT Coupling
Petroleum Handling | MAXI-DRY® Dry Disconnect Couplers | Type MDD90 | 90° Swivel Elbow | Coupler x Female NPT
Made in the USA.
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $2,391.69 |
| 8–14 | $2,289.92 |
| 15+ | $2,035.48 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Material(s):
Seal Material(s):
Special Properties:
| Overview: | |||
|---|---|---|---|
|
|||
| Features & Applications: | |||
|
 |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Buna Item # |
Viton® Item # |
EPDM Item # |
Coupler Size |
Female NPT Thread (H) |
A | B | C | D | E | F | G | I | J | Pressure Rating |
|
| MD20DSW | 40000200S | 40000200SV | 40000200SE | 2" | 2" | 10.9" | 4" | 4.4" | 6.1" | 4.3" | 2.5" | 5.1" | 2.5" | 2.8" | 150 PSI | |
| MD30DSW | 40000300S | 40000300SV | - | 3" | 3" | 14.05" | 5" | 6.85" | 9" | 5.5" | 4" | 6.2" | 4" | 4.4" | 125 PSI | |
