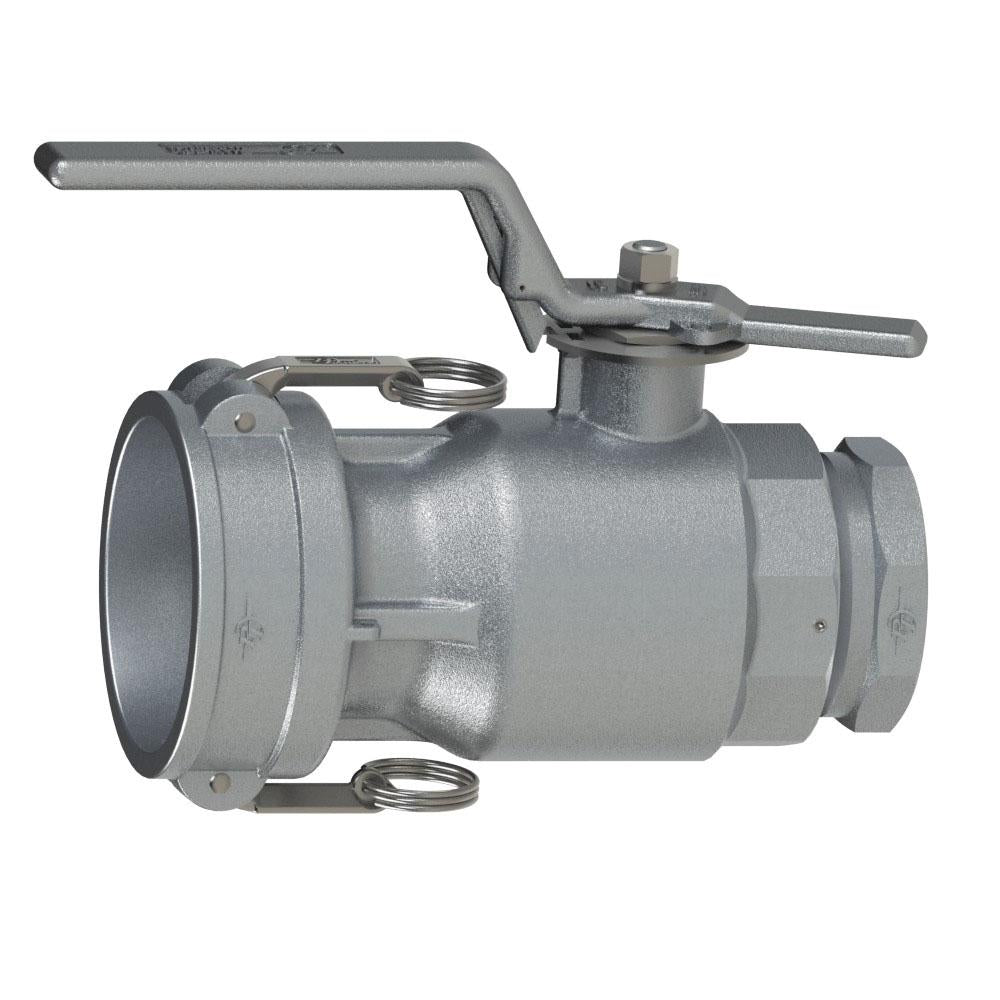

40000260V (MD20DSTRSW) by PT-Coupling | MAXI-DRY® Dry Disconnect Coupler | Type MDD90 | Straight Swivel | 2" Coupler x 2" Female NPT | Aluminum | Viton Seal

40000260V (MD20DSTRSW) by PT-Coupling | MAXI-DRY® Dry Disconnect Coupler | Type MDD90 | Straight Swivel | 2" Coupler x 2" Female NPT | Aluminum | Viton Seal

Sale price$733.81

PT Coupling
Petroleum Handling | MAXI-DRY® Dry Disconnect Couplers | Type MDD90 | Straight Swivel | Coupler x Female NPT

Made in the USA.
Buy More, Save More!
Quantity Price Each
5–14 $689.78
15–29 $623.74
30+ $550.36
Discounts applied in cart/checkout.

Product Data:

Series:
  • Petroleum Handling
Shape:

Straight

Material(s):
  • Aluminum
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Buna
Item #		 Viton®
Item #		 Coupler
Size		 Female
NPT Thread
(H)		 A B C D E F G I Pressure
Rating
MD20DSTRSW 40000260 40000260V 2" 2" 9" 3.5" 4.4" 6.1" 4.3" 2.5" 5.1" 2.5" 150 PSI
MD30DSTRSW 40000360 40000360V 3" 3" 10.9" 3.9" 6.5" 9" 5.5" 4" 6.2" 4" 125 PSI
