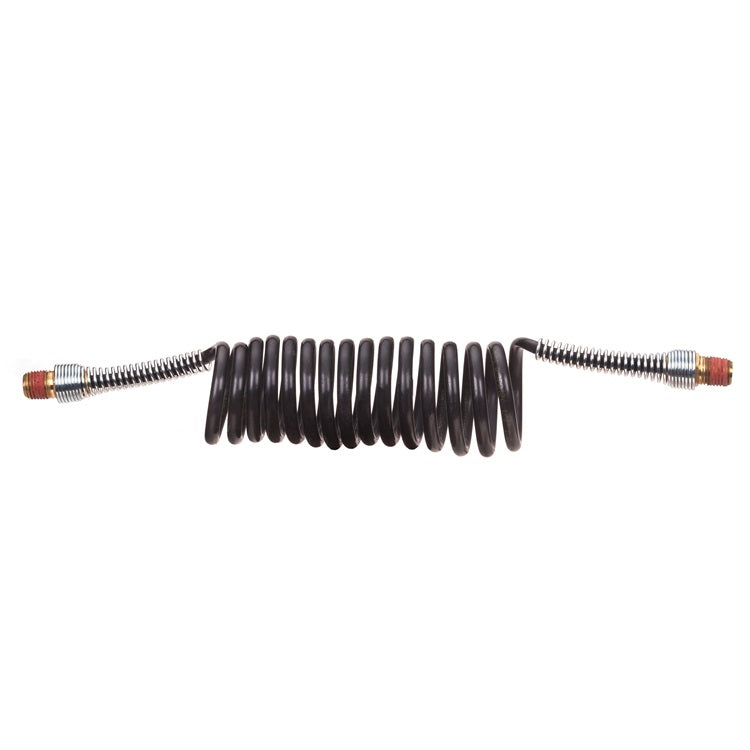

3SCE-0303304-166 Synflex Eclipse by Danfoss | 3SCE Eclipse | Fifth-Wheel Slider Coil Hose | 1/4" Male Pipe x 1/4" Male Pipe | Black | 3.5" Pigtails | 54ft Length

3SCE-0303304-166 Synflex Eclipse by Danfoss | 3SCE Eclipse | Fifth-Wheel Slider Coil Hose | 1/4" Male Pipe x 1/4" Male Pipe | Black | 3.5" Pigtails | 54ft Length

Sale price$37.13

Synflex by Danfoss
3SCE Eclipse Series | Fifth-Wheel Slider Coil Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Buy More, Save More!
Quantity Price Each
10–39 $34.90
40–79 $31.56
80+ $27.85
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
  • Synflex Eclipse
Series:
  • Air Brake Coils
Tubing Construction:
  • Nylon
Hose Properties:
Application: Articulating connections for air brake line systems (connections between towed and towing motor vehicle).
Tractor-to-trailer air connections used in extremely low temperatures.		 SAE Rating: Meets: SAE J844 Type B, DOT-FMVSS 106, (49 FR571.106)
Tube: 100% Polyamide Reinforcement: Polyester Yarn
Operating Temperature: -65°F to +200°F
(-54°C to +93°C)
Features: Brass end fittings with corrosion resistant springguards.
Superior abrasion resistance.
Excellent return and coil memory.
Enhanced flexibility and extension.
Part Number Valve Pigtail Length End Fittings Working Length Retracted Length
mm in mm ft mm in
3SCE-0303304-166 88,9 mm 3.50" 1/4" Male Pipe x 1/4" Male Pipe 1.371,6mm 54.00" 254,0mm 10.00"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
