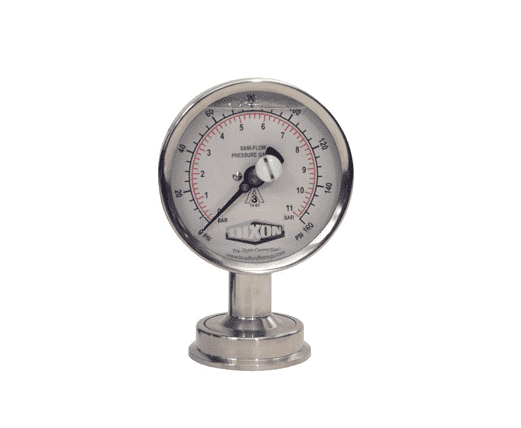

3S-G-2U-GFBTSS Dixon Stainless Steel Bottom Mount Sanitary Pressure Gauge - 3-1/2" Dial Size - 2" Clamp Size - 0-300 PSI Range

3S-G-2U-GFBTSS Dixon Stainless Steel Bottom Mount Sanitary Pressure Gauge - 3-1/2" Dial Size - 2" Clamp Size - 0-300 PSI Range

Sale price$841.04

Dixon Sanitary Pressure Gauges
3-1/2" Gauge - 0-300 PSI Range - Stainless Steel
Buy More, Save More!
Quantity Price Each
5–14 $790.58
15–29 $714.88
30+ $630.78
Discounts applied in cart/checkout.

Product Data:
Features:
  • Accuracy: ± 1.5% of full scale
  • Over range capacity: 30%
  • Wetted surfaces: 316L stainless steel
  • Surface finishes (wetted parts): Ra max = 25 microinches
  • Case material: 304 stainless steel
  • Dial size: 3-1/2"
  • Lens material: polycarbonate
  • Temperature range: 0°F (-18°C) to 250°F (121°C)
  • Standard fill: food grade glycerin
  • Rezero feature: standard on pointer
Part Number Dial Size Clamp Size Pressure Range
(PSI)		 Fill Mount
3S-G-15U-GFBKSS 3-1/2" 1-1/2" 0-300 PSI Glycerin Back Mount
3S-G-15U-GFBTSS 3-1/2" 1-1/2" 0-300 PSI Glycerin Bottom Mount
3S-G-15U-NFBTSS 3-1/2" 1-1/2" 0-300 PSI No Fill Bottom Mount
3S-G-2I-GFBTSS 3-1/2" 2" 0-300 PSI Glycerin Bottom Mount
3S-G-2T-GFBTSS 3-1/2" 2" 0-300 PSI Glycerin Bottom Mount
3S-G-2U-GFBKSS 3-1/2" 2" 0-300 PSI Glycerin Back Mount
3S-G-2U-GFBTSS 3-1/2" 2" 0-300 PSI Glycerin Bottom Mount
3S-G-2U-GFRTSS 3-1/2" 2" 0-300 PSI Glycerin Right Mount
3S-G-2U-NFBTSS 3-1/2" 2" 0-300 PSI No Fill Bottom Mount
