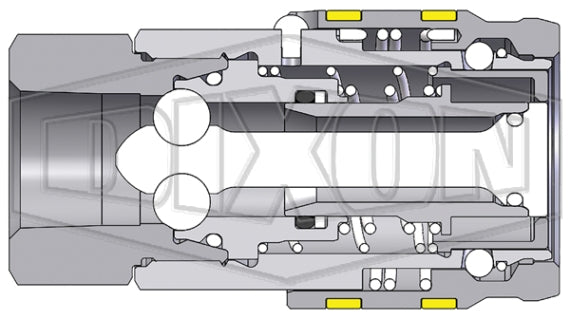

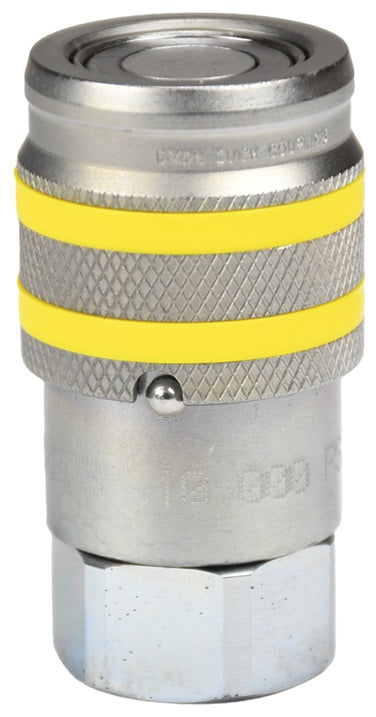

3XKF3 by Dixon Valve | Hydraulic Quick Disconnect Coupling | XK-Series | 3/8" Female NPTF x 3/8" 10K Flushface | Socket | Nitrile Seal | Steel
3XKF3 by Dixon Valve | Hydraulic Quick Disconnect Coupling | XK-Series | 3/8" Female NPTF x 3/8" 10K Flushface | Socket | Nitrile Seal | Steel

3XKF3 by Dixon Valve | Hydraulic Quick Disconnect Coupling | XK-Series | 3/8" Female NPTF x 3/8" 10K Flushface | Socket | Nitrile Seal | Steel

Sale price$114.69

Dixon Valve & Coupling
Hydraulic Coupling: XK-Series 10K Flushface Coupler (Female Threads)

For use with hydraulic tools and power units such as hydraulic torque tools, jacks, fire rescue tools, and hand pumps.
Buy More, Save More!
Quantity Price Each
5–19 $107.81
20–59 $97.49
60+ $86.02
Discounts applied in cart/checkout.

Product Data:

Series:
  • XK Series
Seal Material(s):
  • Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • 10K Flushface
  • Interchanges with Parker FH-Series
Features:
  • Flushface
  • Automatic locking sleeve
  • Colored ID bands
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS-compliant zinc nickel for corrosion resistance.
  • Steel plugs are hardened to provide resistance to brinelling.
Seal Components:
  • Plugs have molded polyurethane valve seals, with a temperature range of -65°F to 212°F (-54°C to 100°C).
  • Couplers have a polyurethane valve stem O-ring, with a temperature range of -65°F to 212°F (-54°C to 100°C).
  • Ancillary coupler and plug seals are Nitrile with a temperature range of -40°F to 250°F (-40°C to 121°C).
  • PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage.
Additional Information:
XK-Series | 10K Flushface Rated Pressure Chart
Body Size Max. Working Connected Burst Disconnected Burst Coupler Disconnected Burst Plug
1/4" 10,000 PSI
(690 bar)		 27,000 PSI
(1862 bar)		 27,000 PSI
(1862 bar)		 30,000 PSI
(2069 bar)
3/8" 10,000 PSI
(690 bar)		 30,000 PSI
(2,068 bar)		 28,000 PSI
(1,930 bar)		 27,000 PSI
(1,860 bar)
XK-Series | 10K Flushface Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
2XKF2 Socket/Female 1/4" 1/4" - 18 Female NPTF Steel 2.10" (53 mm) 1.16" (30 mm) 7/8"
3XKF3 Socket/Female 3/8" 3/8" - 18 Female NPTF Steel 2.41"
(61.21mm)		 1.31"
(33.27mm)		 1"
XK-Series | 10K Flushface Coupler (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
2XKM2 Socket/Female 1/4" 1/4" - 18 Female NPTF Steel 2.38"
(60 mm)		 1.16"
(30 mm)		 7/8"
3XKM3 Socket/Female 3/8" 3/8" - 18 Female NPTF Steel 2.77"
(70 mm)		 1.16"
(30 mm)		 1"
XK-Series | 10K Flushface Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
XK2F2 Plug/Male 1/4" 1/4" - 18 Female NPTF Steel 2.15"
(55 mm)		 0.92"
(23 mm)		 7/8"
XK3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 2.50"
(63.5mm)		 1.07"
(27.18mm)		 1"
HT-Series | Correct Connect® Bands
Part Number
Blue Part Number		 Part Number
Orange Part Number		 Part Number
Green Part Number		 Part Number
Yellow Part Number		 Part Number
Red Part Number		 Description Body Size
2HTBAND-B 2HTBAND-O 2HTBAND-G 2HTBAND-Y 2HTBAND-R Coupler Band 1/4"
HT2BAND-B HT2BAND-O HT2BAND-G HT2BAND-Y HT2BAND-R Plug Band 1/4"
3HTBAND-B 3HTBAND-O 3HTBAND-G 3HTBAND-Y 3HTBAND-R Coupler Band 3/8"
HT3BAND-B HT3BAND-O HT3BAND-G HT3BAND-Y HT3BAND-R Plug Band 3/8"
4HTBAND-B 4HTBAND-O 4HTBAND-G 4HTBAND-Y 4HTBAND-R Coupler Band 1/2"
HT4BAND-B HT4BAND-O HT4BAND-G HT4BAND-Y HT4BAND-R Plug Band 1/2"
5HTBAND-B 5HTBAND-O 5HTBAND-G 5HTBAND-Y 5HTBAND-R Coupler Band 5/8"
HT5BAND-B HT5BAND-O HT5BAND-G HT5BAND-Y HT5BAND-R Plug Band 5/8"
6HTBAND-B 6HTBAND-O 6HTBAND-G 6HTBAND-Y 6HTBAND-R Coupler Band 3/4"
HT6BAND-B HT6BAND-O HT6BAND-G HT6BAND-Y HT6BAND-R Plug Band 3/4"
8HTBAND-B 8HTBAND-O 8HTBAND-G 8HTBAND-Y 8HTBAND-R Coupler Band 1"
HT8BAND-B HT8BAND-O HT8BAND-G HT8BAND-Y HT8BAND-R Plug Band 1"
