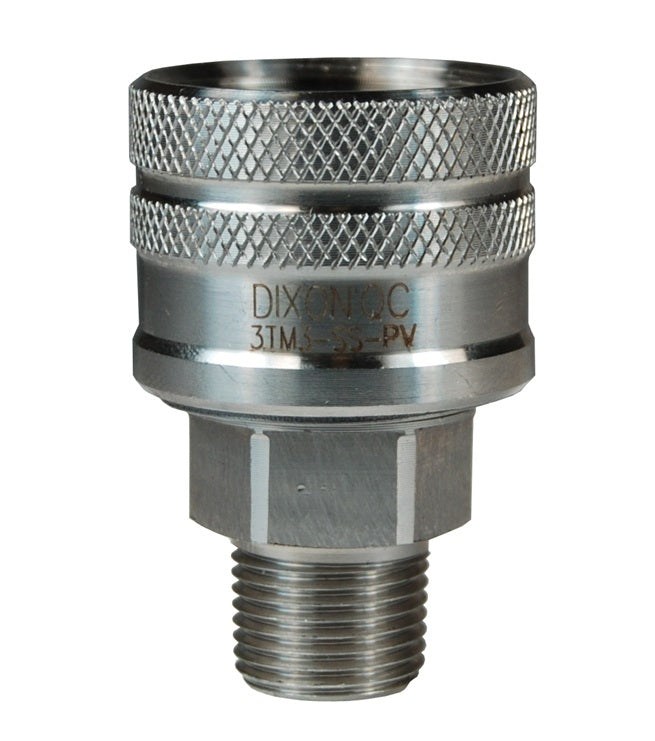

3TM3-PV by Dixon Valve | Hydraulic Quick Disconnect Coupling | T-Series | 1/4" Male NPT x 1/4" 10K Threaded Poppet | Socket | Nitrile Seal | Steel
3TM3-PV by Dixon Valve | Hydraulic Quick Disconnect Coupling | T-Series | 1/4" Male NPT x 1/4" 10K Threaded Poppet | Socket | Nitrile Seal | Steel

3TM3-PV by Dixon Valve | Hydraulic Quick Disconnect Coupling | T-Series | 1/4" Male NPT x 1/4" 10K Threaded Poppet | Socket | Nitrile Seal | Steel

Sale price$37.92

Dixon Valve & Coupling
Hydraulic Coupling: T-Series 10K Threaded Poppet Coupler (Male Threads)

Designed for high pressure applications including hydraulic rams and pumps where low flow and pressures up to 10,000 PSI are encountered.
Buy More, Save More!
Quantity Price Each
10–39 $35.64
40–79 $32.23
80+ $28.44
Discounts applied in cart/checkout.

Product Data:

Series:
  • T Series
Shape:

Straight

Ends Configuration:
  • 3/8in Female T-Series QD Interchange
  • 3/8in Male NPTF
Applications:
  • Hydraulic tools, jacks, hand pumps, fire rescue tools, crimping, bolting, and power units.
Compatibility & Interchange:
  • High Pressure Screw-Together Interchange
  • Parker 3000-Series
  • Enerpac C604
  • Interchangeable to ISO 14540
Construction:
  • Machined components are manufactured using solid steel or 316 stainless steel bar stock.
  • Chrome steel ball valve is mechanically seated to improve pressure sealing performance.
  • Steel plugs are machined from solid high strength steel bar stock.
  • Steel componentry is plated using ROHS-compliant trivalent chrome.
Seal Components:
  • Nitrile O-ring with TPC-ET back-up ring is standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).
Additional Information:
T-Series | 10K Threaded (Connected) Rated Pressure Chart
Body
Size		 Steel Ball
Coupler/Plug		 316 SS Ball
Coupler/Plug		 Steel Poppet
Coupler/Plug		 316 SS Poppet
Coupler/Plug		 Valve
Style		 Air
Inclusion		 Fluid
Loss		 Flow
ΔP = 60 PSI
Max.
Working		 Burst Max.
Working		 Burst Max.
Working		 Burst Max.
Working		 Burst
1/4" 10,000 PSI
(700 Bar)		 34,300 PSI
(2,350 Bar)		 - - - - - - Ball 0.97 0.56 3.8 GPM
3/8" 10,000 PSI
(700 Bar)		 30,000 PSI
(2,050 Bar)		 10,000 PSI
(700 Bar)		 30,900 PSI
(2,100 Bar)		 10,000 PSI
(700 Bar)		 36,800 PSI
(2,500 Bar)		 10,000 PSI
(700 Bar)		 36,500 PSI
(2,500 Bar)		 Ball 2.04 0.98 4.2 GPM
3/8" 10,000 PSI
(700 Bar)		 30,000 PSI
(2,050 Bar)		 10,000 PSI
(700 Bar)		 30,900 PSI
(2,100 Bar)		 10,000 PSI
(700 Bar)		 36,800 PSI
(2,500 Bar)		 10,000 PSI
(700 Bar)		 36,500 PSI
(2,500 Bar)		 Poppet 1.56 0.77 6.0 GPM

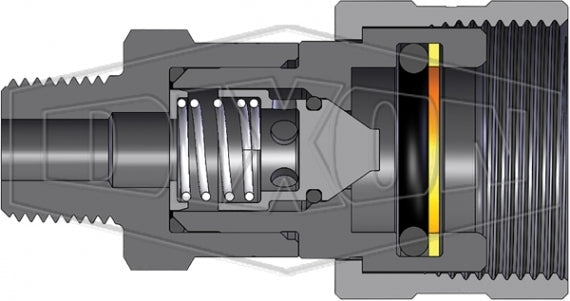

T-Series | 10K Threaded Poppet Coupler (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Port Size Material Length Max.
OD		 Hex
3TM3-PV Socket/Female 3/8" 3/8" - 18 Male NPT Steel 2.78"
(70.7mm)		 1.36"
(34.5mm)		 1"
3TM3-SS-PV Socket/Female 3/8" 3/8" - 18 Male NPT 316 Stainless 2.78"
(70.7mm)		 1.36"
(34.5mm)		 1"
T-Series | 10K Threaded Poppet Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Port Size Material Length Max.
OD		 Hex
T3F3-PV Plug/Male 3/8" 3/8" - 18 Male NPT Steel 1.53"
(38.9mm)		 1.19"
(30.2mm)		 15/16"
T3F3-SS-PV Plug/Male 3/8" 3/8" - 18 Male NPT 316 Stainless 1.53"
(38.9mm)		 1.19"
(30.2mm)		 15/16"
