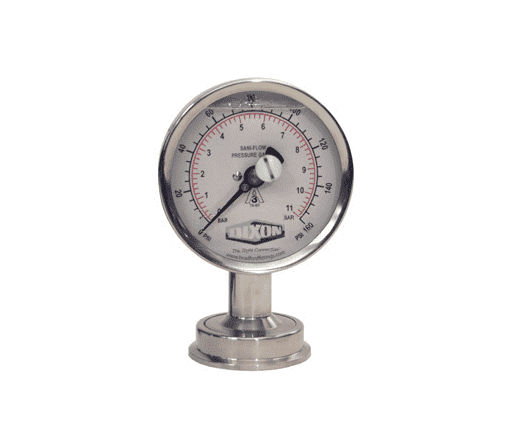

3S-K-15U-GFBTSS Dixon Stainless Steel Bottom Mount Sanitary Pressure Gauge - 3-1/2" Dial Size - 1-1/2" Clamp Size - 0-1000 PSI Range
Dixon

3S-K-15U-GFBTSS Dixon Stainless Steel Bottom Mount Sanitary Pressure Gauge - 3-1/2" Dial Size - 1-1/2" Clamp Size - 0-1000 PSI Range

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Accuracy: ± 1.5% of full scale
  • Over range capacity: 30%
  • Wetted surfaces: 316L stainless steel
  • Surface finishes (wetted parts): Ra max = 25 microinches
  • Case material: 304 stainless steel
  • Dial size: 3-1/2"
  • Lens material: polycarbonate
  • Temperature range: 0°F (-18°C) to 250°F (121°C)
  • Standard fill: food grade glycerin
  • Rezero feature: standard on pointer
Part Number Dial Size Clamp Size Pressure Range
(PSI)		 Fill Mount
3S-K-15U-GFBKSS 3-1/2" 1-1/2" 0-1000 PSI Glycerin Center Back Mount
3S-K-15U-GFBTSS 3-1/2" 1-1/2" 0-1000 PSI Glycerin Bottom Mount
3S-K-2U-GFBKSS 3-1/2" 2" 0-1000 PSI Glycerin Center Back Mount
3S-K-2U-GFBTSS 3-1/2" 2" 0-1000 PSI Glycerin Bottom Mount

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
