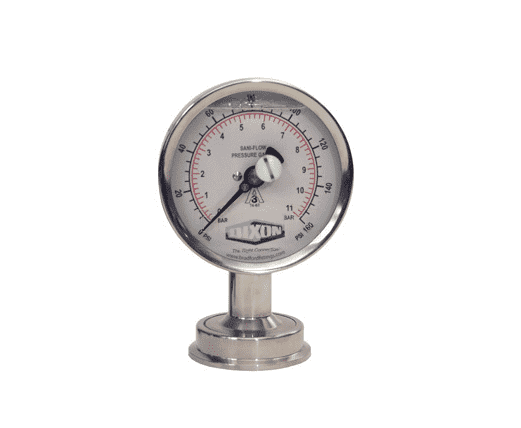

3S-EB-15U-GFBTS Dixon Stainless Steel Bottom Mount Sanitary Pressure Gauge - 3-1/2" Dial Size - 1-1/2" Clamp Size - 0-160 PSI / 0-11 Bar Range

3S-EB-15U-GFBTS Dixon Stainless Steel Bottom Mount Sanitary Pressure Gauge - 3-1/2" Dial Size - 1-1/2" Clamp Size - 0-160 PSI / 0-11 Bar Range

Sale price$841.04

Dixon Sanitary Pressure Gauges
3-1/2" Gauge - 0-160 PSI Range - Stainless Steel
Buy More, Save More!
Quantity Price Each
5–14 $790.58
15–29 $714.88
30+ $630.78
Discounts applied in cart/checkout.

Product Data:
Features:
  • Accuracy: ± 1.5% of full scale
  • Over range capacity: 30%
  • Wetted surfaces: 316L stainless steel
  • Surface finishes (wetted parts): Ra max = 25 microinches
  • Case material: 304 stainless steel
  • Dial size: 3-1/2"
  • Lens material: polycarbonate
  • Temperature range: 0°F (-18°C) to 250°F (121°C)
  • Standard fill: food grade glycerin
  • Rezero feature: standard on pointer
Part Number Dial Size Clamp Size Pressure Range
(PSI)		 Fill Mount
3S-E-15U-GFBKSS 3-1/2" 1-1/2" 0-160 PSI Glycerin Back Mount
3S-E-15U-GFBTSS 3-1/2" 1-1/2" 0-160 PSI Glycerin Bottom Mount
3S-E-15U-GFLFSS 3-1/2" 1-1/2" 0-160 PSI Glycerin Left Mount
3S-E-15U-GFTPSS 3-1/2" 1-1/2" 0-160 PSI Glycerin Top Mount
3S-E-15U-NFBTSS 3-1/2" 1-1/2" 0-160 PSI No Fill Bottom Mount
3S-E-15U-NFLFSS 3-1/2" 1-1/2" 0-160 PSI No Fill Left Mount
3S-E-15U-NFRTSS 3-1/2" 1-1/2" 0-160 PSI No Fill Right Mount
3S-E-2.5UGFBKSS 3-1/2" 2-1/2" 0-160 PSI No Fill Center Back Mount
3S-E-25U-GFBTSS 3-1/2" 2-1/2" 0-160 PSI No Fill Bottom Mount
3S-E-2I-NFBTSS 3-1/2" 2" 0-160 PSI No Fill Bottom Mount
3S-E-2U-GFBKSS 3-1/2" 2" 0-160 PSI Glycerin Back Mount
3S-E-2U-GFBTSS 3-1/2" 2" 0-160 PSI Glycerin Bottom Mount
3S-E-2U-GFLFSS 3-1/2" 2" 0-160 PSI Glycerin Left Mount
3S-E-2U-GFRTSS 3-1/2" 2" 0-160 PSI Glycerin Right Mount
3S-E-2U-GFTPSS 3-1/2" 2" 0-160 PSI Glycerin Top Mount
3S-E-2U-NFBKSS 3-1/2" 2" 0-160 PSI No Fill Center Back Mount
3S-E-2U-NFBTSS 3-1/2" 2" 0-160 PSI No Fill Bottom Mount
3S-E-3I-NFBTSS 3-1/2" 3" 0-160 PSI No Fill Bottom Mount
3S-E-3U-GFBTSS 3-1/2" 3" 0-160 PSI Glycerin Bottom Mount
3S-EB-15U-GFBTS 3-1/2" 1-1/2" 0-160 PSI / 0-11 Bar Range Glycerin Bottom Mount
3S-EB-2U-GFLFSS 3-1/2" 2" 0-160 PSI Glycerin Left Mount

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
