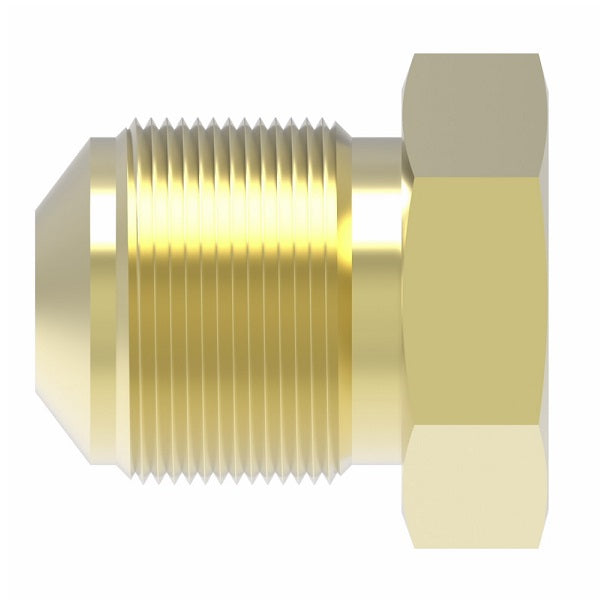

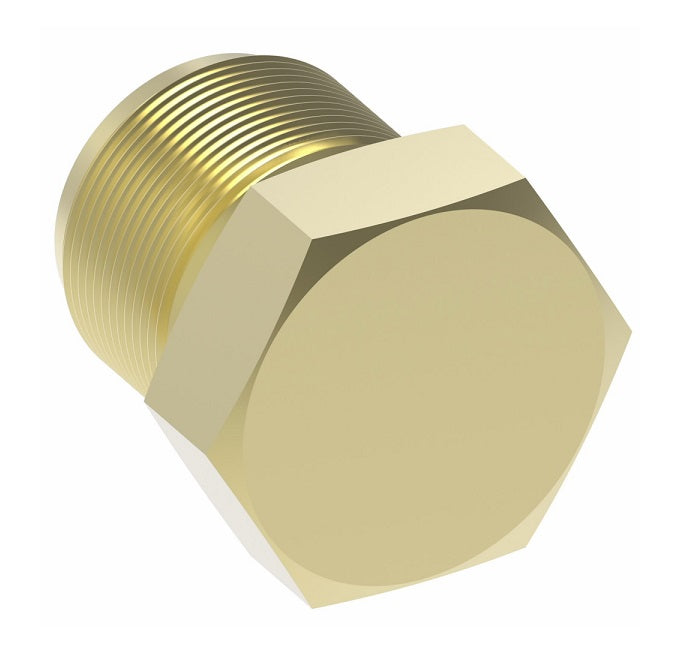

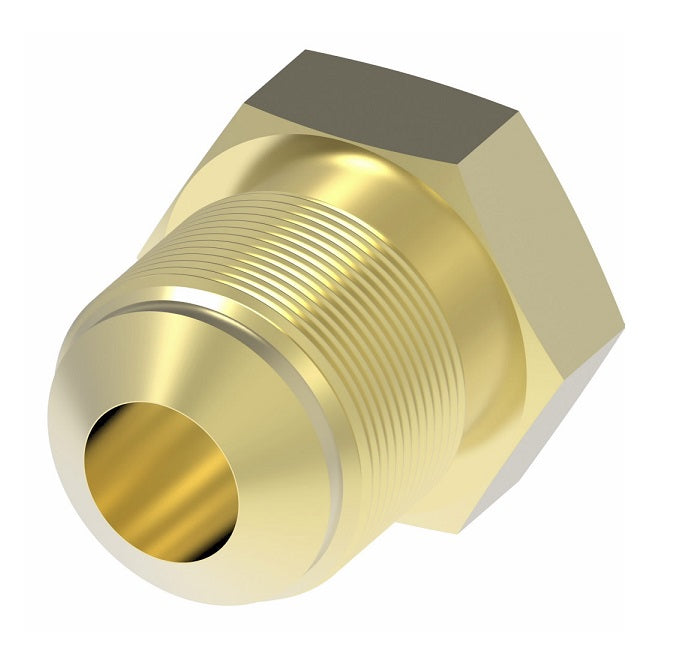

39X4 by Danfoss | SAE 45° Flare Plug | 1/4" Tube OD | Brass
39X4 by Danfoss | SAE 45° Flare Plug | 1/4" Tube OD | Brass
39X4 by Danfoss | SAE 45° Flare Plug | 1/4" Tube OD | Brass

39X4 by Danfoss | SAE 45° Flare Plug | 1/4" Tube OD | Brass

Minimum Order Quantity: 5 Units

Sale price$4.84

Aeroquip® by Danfoss
SAE 45° Flare Plug

Product Data:

Shape:

No Orientation

Material(s):
  • Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • LP and natural gas, flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems.
Advantages:
  • Low cost and reusability.
  • Long or short nut.
  • Good vibration resistance - use long nut when greater vibration resistance is required.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 010109
  • Listed by Underwriter's Laboratories (available on special order) for flammable liquids, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-18 3/4-16 7/8-14 1-1/16-14
Brass
Part Number 		Tube O.D. Hex
C		 L D1
(opt.)
39X2 1/8" 5/16" 0.47" 0.079"
39X3 3/16" 3/8" 0.58" 0.126"
39X4 1/4" 7/16" 0.69" 0.189"
39X6 3/8" 5/8" 0.88" 0.282"
39X8 1/2" 3/4" 1.06" 0.408"
39X10 5/8" 7/8" 1.19" 0.502"
39X12 3/4" 1-1/16" 1.31" 0.627"
