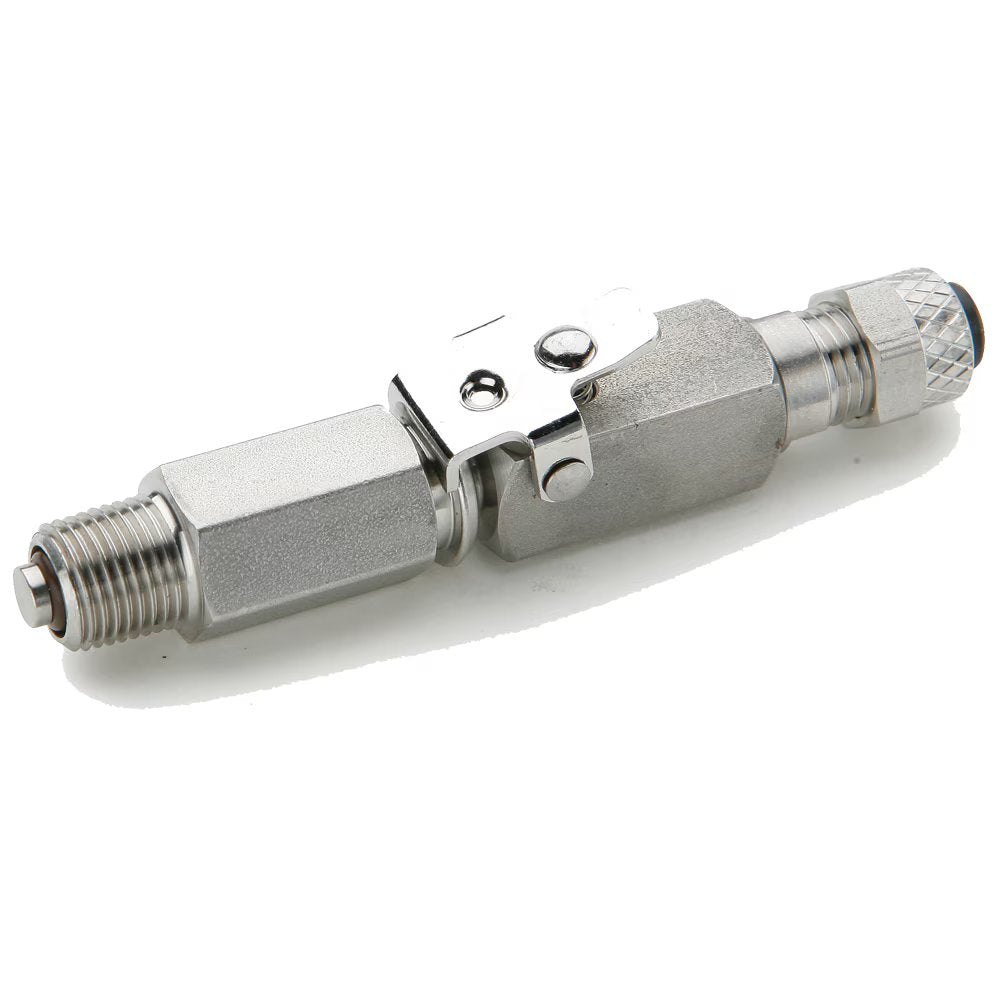

398PDSS-4-4 by Parker | Poly-Tite Fittings | Double End Shutoff Pipe Connector Quick Coupler | 1/4" Tube OD Connector x 1/4" Male Pipe Thread | .562" Hex | 2.93" Length | Straight | Stainless Steel

398PDSS-4-4 by Parker | Poly-Tite Fittings | Double End Shutoff Pipe Connector Quick Coupler | 1/4" Tube OD Connector x 1/4" Male Pipe Thread | .562" Hex | 2.93" Length | Straight | Stainless Steel

Sale price$497.11

by Parker Hannifin
Poly-Tite Fittings:Double End Shut-Off Pipe Connector Quick Coupler 398PDSS
Buy More, Save More!
Quantity Price Each
5–14 $467.28
15–29 $422.54
30+ $372.83
Discounts applied in cart/checkout.

Product Data:

Series:
  • 398PDSS Series
Shape:

Straight

Ends Configuration:
  • 1/4in Tube Compression
  • 1/4in Male NPTF
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube OD Pipe Thread L M Hex (C) Flow Diameter (F)
398PDSS-4-2 1/4" 1/8" 2.93" 1.31" .500" .125"
398PDSS-4-4 1/4" 1/4" 2.93" 1.31" .562" .125"
398PDSS-6-4 3/8" 1/4" 3.10" 1.43" .625" .125"
