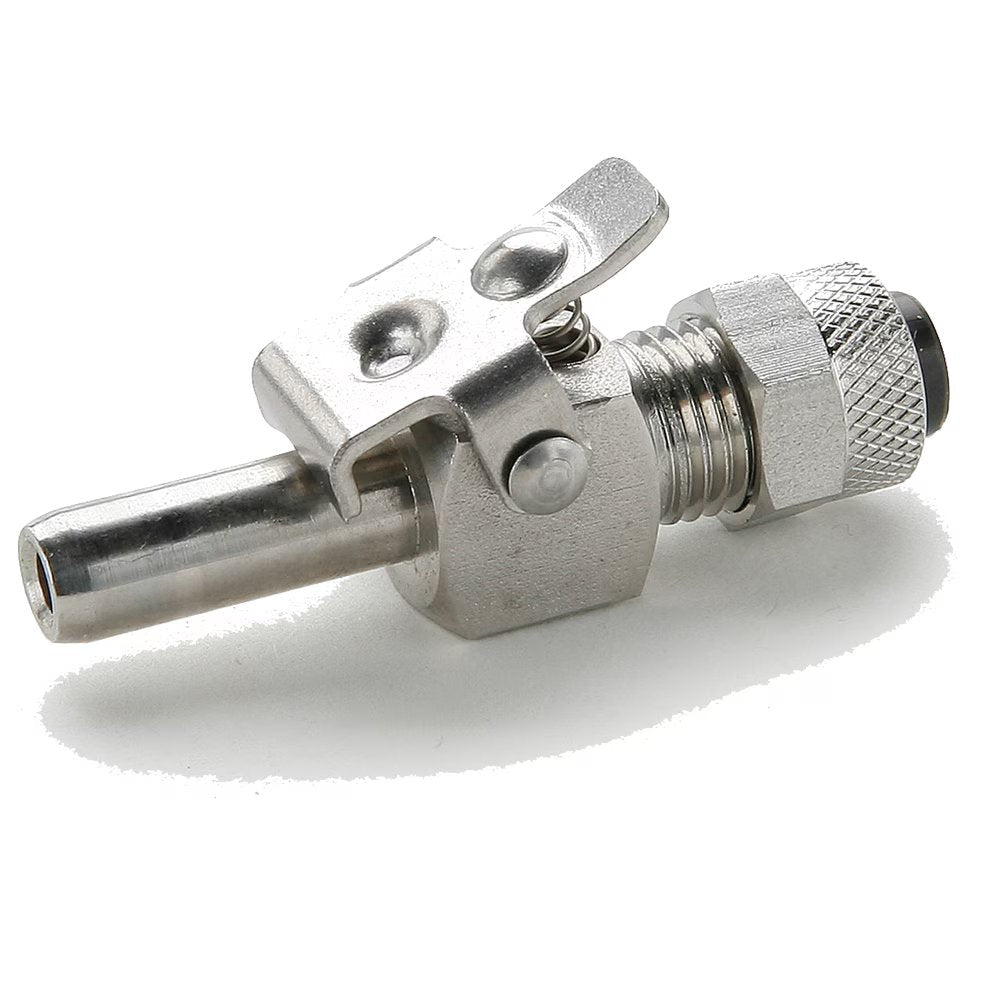

393PSS-4-4 by Parker | Poly-Tite Fittings | Through Type Insert | 1/4" Tube Size x 1/4" Insert Diameter | 7/16" Square | 1.677" Length | Straight | Stainless Steel

393PSS-4-4 by Parker | Poly-Tite Fittings | Through Type Insert | 1/4" Tube Size x 1/4" Insert Diameter | 7/16" Square | 1.677" Length | Straight | Stainless Steel

Sale price$178.19

by Parker Hannifin
Poly-Tite Fittings:Through Type Insert 393PSS
Buy More, Save More!
Quantity Price Each
5–19 $167.50
20–59 $151.46
60+ $133.64
Discounts applied in cart/checkout.

Product Data:

Series:
  • 393PSS Series
Shape:

Straight

Ends Configuration:
  • 1/4in Tube Compression
  • 1/4in Tube Compression
  • Some Ends Match
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube OD Insert Diameter (D) L Square (C) H Flow Diameter (F)
393PSS-4-4 1/4" 1/4" 1.677" 7/16" .99" .125"
393PSS-6-6 3/8" 3/8" 2.030" 1/2" 1.27" .203"
