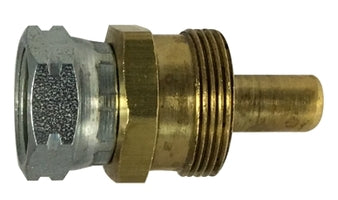

39357 by Midland | DOT Air Brake Reusable Hose Fitting | Connector Hose (Body Only) | 3/8" Hose ID x 3/4-20 Female ABS | Brass

39357 by Midland | DOT Air Brake Reusable Hose Fitting | Connector Hose (Body Only) | 3/8" Hose ID x 3/4-20 Female ABS | Brass

Sale price$16.28

Midland Industries
Brass Fitting - D.O.T. Air Brake Reusable Hose Fitting - Female Connector Hose (Body Only) - Brass
Buy More, Save More!
Quantity Price Each
10–39 $15.30
40–79 $13.84
80+ $12.21
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Reusable Hose End
  • 3/4in Reusable Hose End
Material(s):
  • Brass

SPECIFICATIONS

Applications: Air Brake hose connections. Advantages: Can be used for nearly any brake line. Easy to assemble with a good selection of hose end configurations. Brass material offers excellent resistance against corrosion.
SAE Rating: N/A Conformance: Meets SAE & DOT specifications (FMVCS 10 GAL)
Pressure: Determined by maximum working pressure for hose size. Up to 125 psi Temperature Range: -40°F to + 120°F ( -40°C to +48°C )
Tolerance: +/- .02 on all dimensions.
Assembly Instructions:
  • 1) Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward fitting.
  • 2) Push hose into fitting until it bottoms.
  • 3) Screw nut until contact is made with body hex.
  • NOTE: When reassembling fitting, body and nut should be inspected. Only reuse if in proper condition. Sleeves should never be reused.
Part Number Hose I.D. x Female ABS Approx. Weight
(Lbs.)
39357
(39-357)		 3/8" x 3/4-20 0.24
39358
(39-358)		 1/2" x 7/8-20 0.38

Dimension Data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
