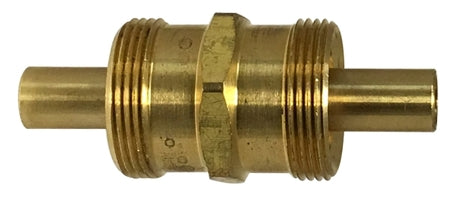

39319 by Midland | DOT Air Brake Reusable Hose Fitting | Union (Body Only) | 1/2" Hose ID | 1-1/8-20 Thread | Brass

39319 by Midland | DOT Air Brake Reusable Hose Fitting | Union (Body Only) | 1/2" Hose ID | 1-1/8-20 Thread | Brass

Sale price$17.20

Midland Industries
Brass Fitting - D.O.T. Air Brake Reusable Hose Fitting - Union (Body Only) - Brass
Buy More, Save More!
Quantity Price Each
10–39 $16.17
40–79 $14.62
80+ $12.90
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Reusable Hose End
  • 1/2in Reusable Hose End
  • Some Ends Match
Material(s):
  • Brass

SPECIFICATIONS

Applications: Air Brake hose connections. Advantages: Can be used for nearly any brake line. Easy to assemble with a good selection of hose end configurations. Brass material offers excellent resistance against corrosion.
SAE Rating: N/A Conformance: Meets SAE & DOT specifications (FMVCS 10 GAL)
Pressure: Determined by maximum working pressure for hose size. Up to 125 psi Temperature Range: -40°F to + 120°F ( -40°C to +48°C )
Tolerance: +/- .02 on all dimensions.
Assembly Instructions:
  • 1) Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward fitting.
  • 2) Push hose into fitting until it bottoms.
  • 3) Screw nut until contact is made with body hex.
  • NOTE: When reassembling fitting, body and nut should be inspected. Only reuse if in proper condition. Sleeves should never be reused.
Part Number Hose I.D. Size Approx. Weight
(Lbs.)
39318
(39-318)		 3/8" 31/32-20 0.32
39319
(39-319)		 1/2" 1-1/8-20 0.48

Dimension Data can change without notice.
