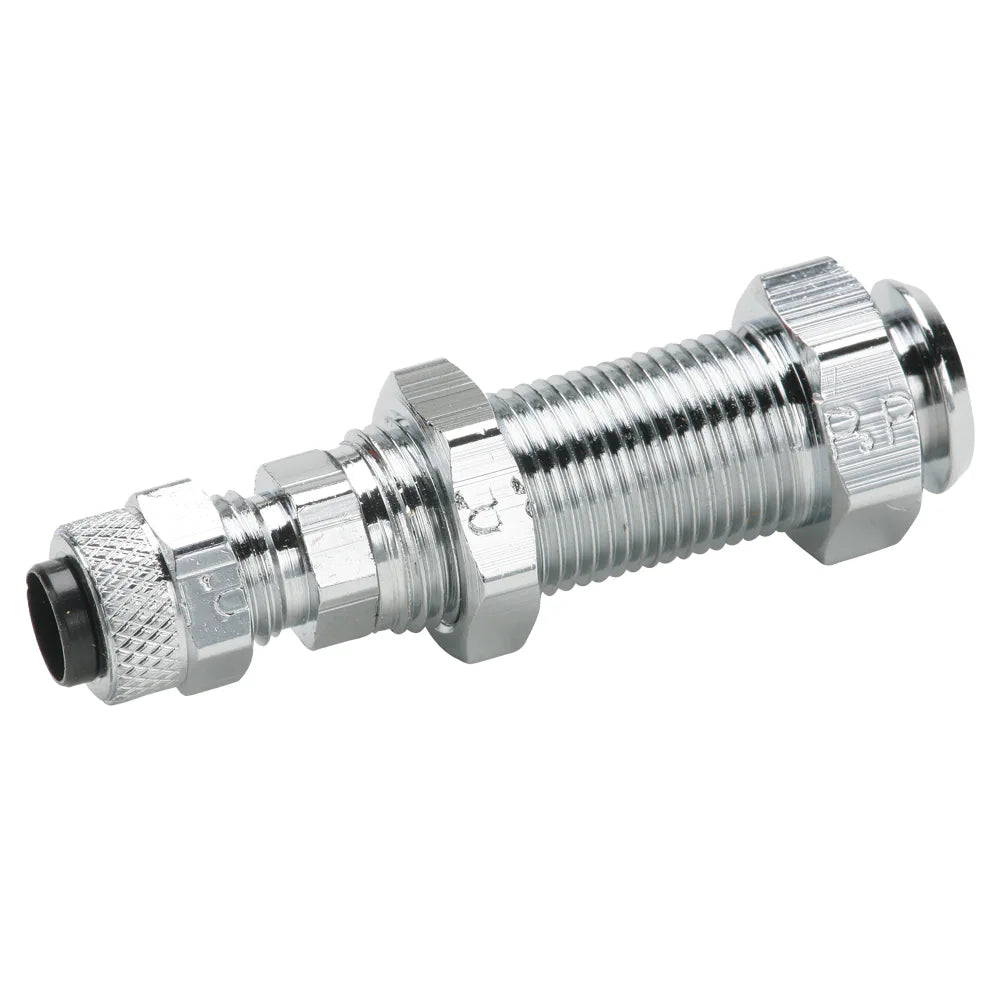

392P-4-4 by Parker | Poly-Tite Fittings | Bulkhead Coupler Body | 1/4" Tube Size x 1/4" Insert Diameter x 1/2" Thread | 5/8" Hex | 2.13" Length | Straight | Chrome Plated Brass | Pack of 5

392P-4-4 by Parker | Poly-Tite Fittings | Bulkhead Coupler Body | 1/4" Tube Size x 1/4" Insert Diameter x 1/2" Thread | 5/8" Hex | 2.13" Length | Straight | Chrome Plated Brass | Pack of 5

Sale price$236.61

by Parker Hannifin
Poly-Tite Fittings:Bulkhead Coupler Body 392P

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–19 $222.41
20–59 $201.12
60+ $177.46
Discounts applied in cart/checkout.

Product Data:

Series:
  • 392P Series
Shape:

Straight

Ends Configuration:
  • 1/4in Tube Compression
  • 1/4in Tube Compression
  • Some Ends Match
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube Size Insert Diameter Straight Thread Hex (C) Max (P) H L Bulkhead Hole Diameter
392P-4-4 1/4" 1/4" 1/2"-24 5/8" .84" .39" 2.13" 1/2"
392P-6-6 3/8" 3/8" 11/16"-24 13/16" .93" .37" 2.01" 11/16"
