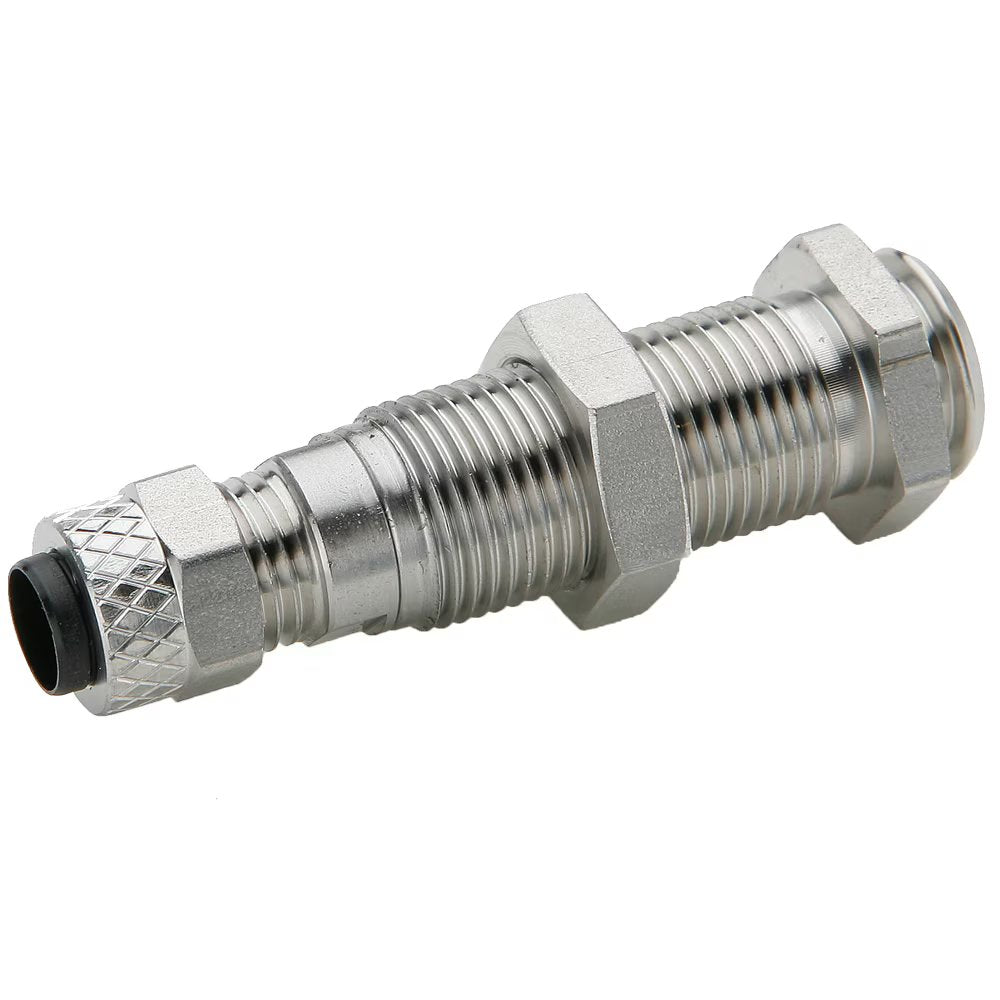

392PSS-6-6 by Parker | Poly-Tite Fittings | Bulkhead Coupler Body | 3/8" Tube OD x 3/8" Thread | .812" Hex | 2.20" Length | Straight | Stainless Steel

392PSS-6-6 by Parker | Poly-Tite Fittings | Bulkhead Coupler Body | 3/8" Tube OD x 3/8" Thread | .812" Hex | 2.20" Length | Straight | Stainless Steel

Sale price$460.89

by Parker Hannifin
Poly-Tite Fittings:Bulkhead Coupler Body 392PSS
Buy More, Save More!
Quantity Price Each
5–14 $433.24
15–29 $391.76
30+ $345.67
Discounts applied in cart/checkout.

Product Data:

Series:
  • 392PSS Series
Shape:

Straight

Ends Configuration:
  • 3/8in Tube Compression
  • 3/8in Tube Compression
  • Some Ends Match
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube OD Bulkhead Thread L Hex (C) H Max (P) Bulkhead Hole Diameter
392PSS-4-4 1/4" 1/2"-24 2.03" .625" .28" .84" 1/2"
392PSS-6-6 3/8" 11/16"-24 2.20" .812" .31" .93" 11/16"
