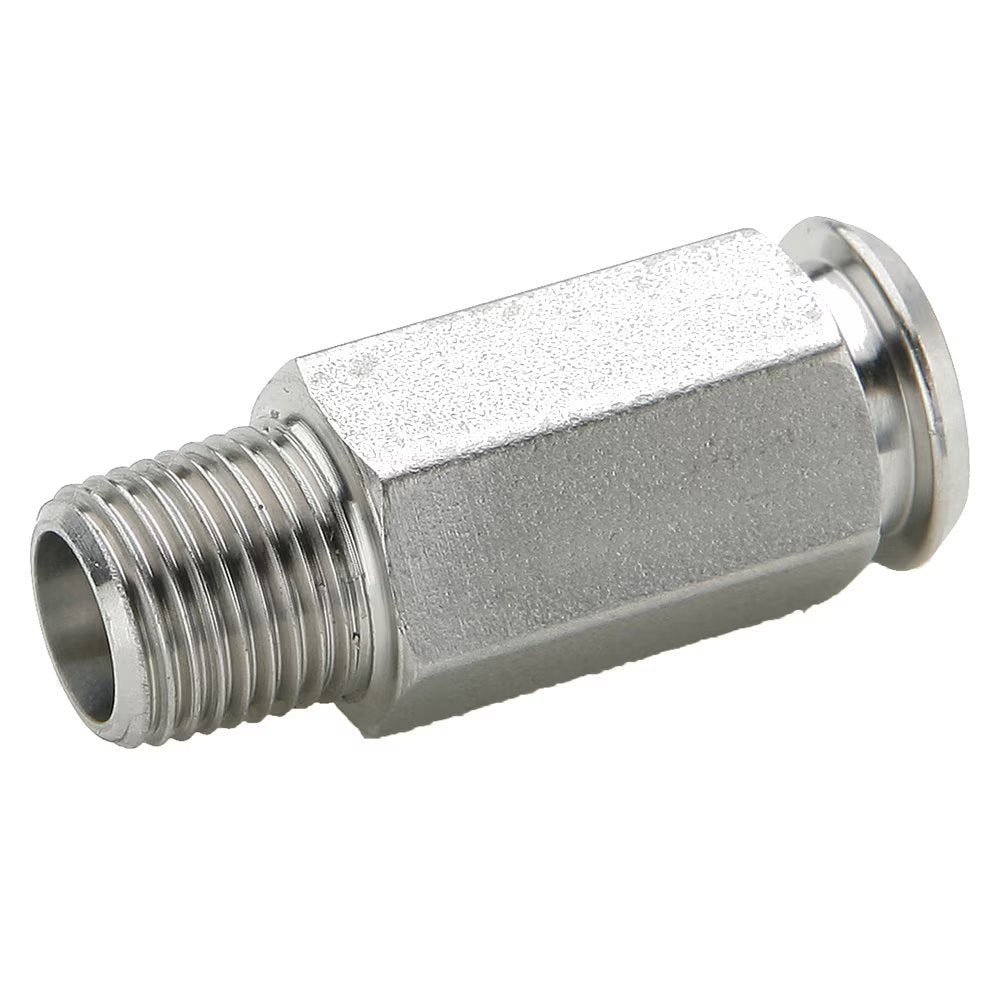

391PSS-4-2 by Parker | Poly-Tite Fittings | Coupler Body | 1/4" Insert Diameter x 1/8" Male Pipe Thread | .500" Hex | 1.271" Length | Straight | Stainless Steel

391PSS-4-2 by Parker | Poly-Tite Fittings | Coupler Body | 1/4" Insert Diameter x 1/8" Male Pipe Thread | .500" Hex | 1.271" Length | Straight | Stainless Steel

Sale price$133.71

by Parker Hannifin
Poly-Tite Fittings:Pipe Coupler Body 391PSS
Buy More, Save More!
Quantity Price Each
5–19 $125.69
20–59 $113.65
60+ $100.28
Discounts applied in cart/checkout.

Product Data:

Series:
  • 391PSS Series
Shape:

Straight

Ends Configuration:
  • 1/4in Tube Compression
  • 1/8in Male NPTF
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Insert Diameter (D) Pipe Thread L Hex (C) M
391PSS-4-2 1/4" 1/8" 1.271" .500 .900"
391PSS-4-4 1/4" 1/4" 1.271" .562 .710"
391PSS-6-4 3/8" 1/4" 1.400" .625 .840"
