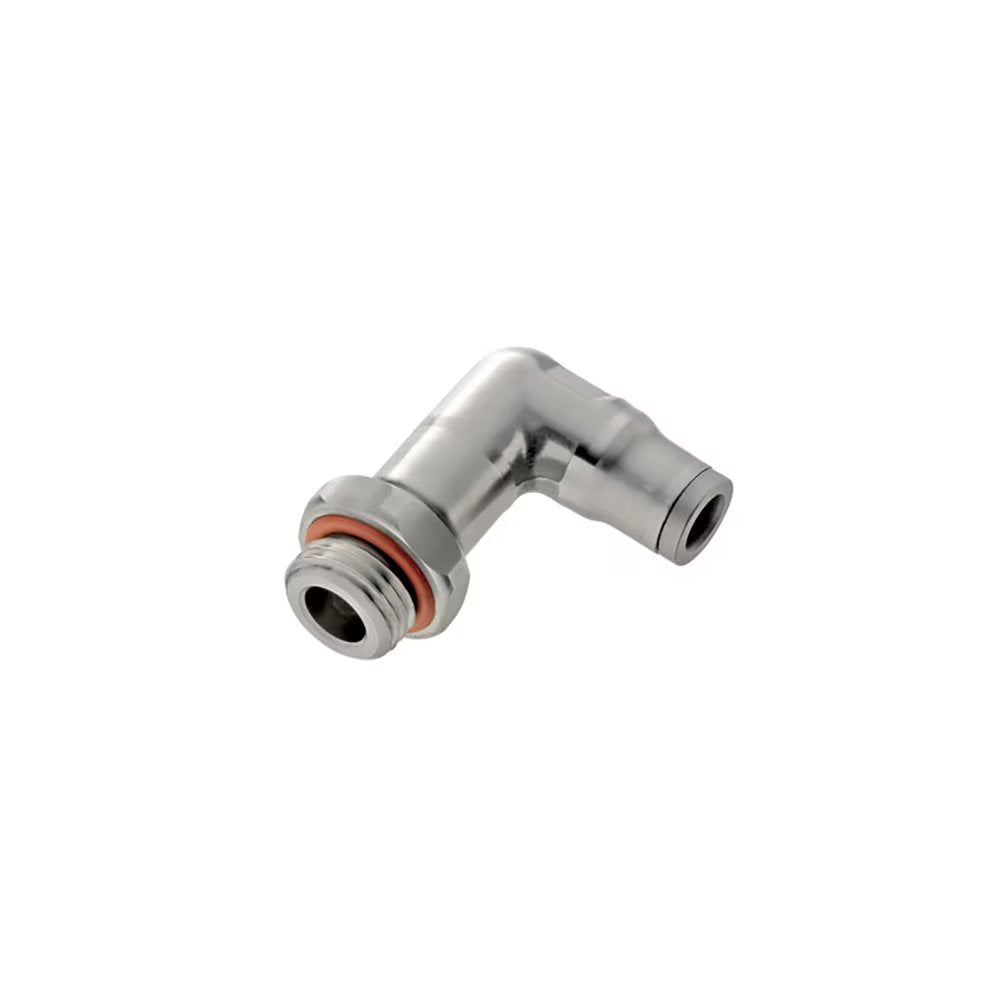

3899 04 13 by Parker | Legris Stud Swivel Fitting | 4 mm Tube Size x 1/4" Male BSPP Thread | 17 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 2

3899 04 13 by Parker | Legris Stud Swivel Fitting | 4 mm Tube Size x 1/4" Male BSPP Thread | 17 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 2

Sale price$213.54

by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3899 Stud Elbow, Male BSPP and Metric Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $200.73
30–59 $181.51
60+ $160.16
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3899 Series
Shape:

90° Elbow

Ends Configuration:
  • 4mm Push-to-Connect
  • 1/4in Male BSPP
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD C F G H L Kg
3899 04 20 5/32" 10-32 10 mm .39" .98" .77" .0139 Kg
3899 04 19 4 mm M5x0.8 10 mm 10 mm 26 mm 18 mm .020 Kg
3899 04 10 4 mm 1/8" 13 mm 10 mm 27 mm 19 mm ..022 Kg
3899 04 13 4 mm 1/4" 17 mm 10 mm 27 mm 19 mm .018 Kg
3899 06 19 4 mm M5x0.8 13 mm 12 mm 33 mm 24 mm .031 Kg
3899 06 10 6 mm 1/8" 6 mm 12 mm 33 mm 24 mm .031 Kg
3899 06 13 6 mm 1/4" 17 mm 12 mm 32 mm 24 mm .036 Kg
3899 08 10 8 mm 1/8" 14 mm 15 mm 35 mm 25 mm .039 Kg
3899 08 13 8 mm 1/4" 17 mm 15 mm 35 mm 25 mm .044 Kg
3899 08 17 8 mm 3/8" 21 mm 15 mm 34.5 mm 25 mm .048 Kg
3899 10 13 10 mm 1/4" 19 mm 17 mm 43 mm 31 mm .069 Kg
3899 10 17 10 mm 3/8" 21 mm 17 mm 42 mm 31 mm .072 Kg

The body swivels for positioning purposes.
