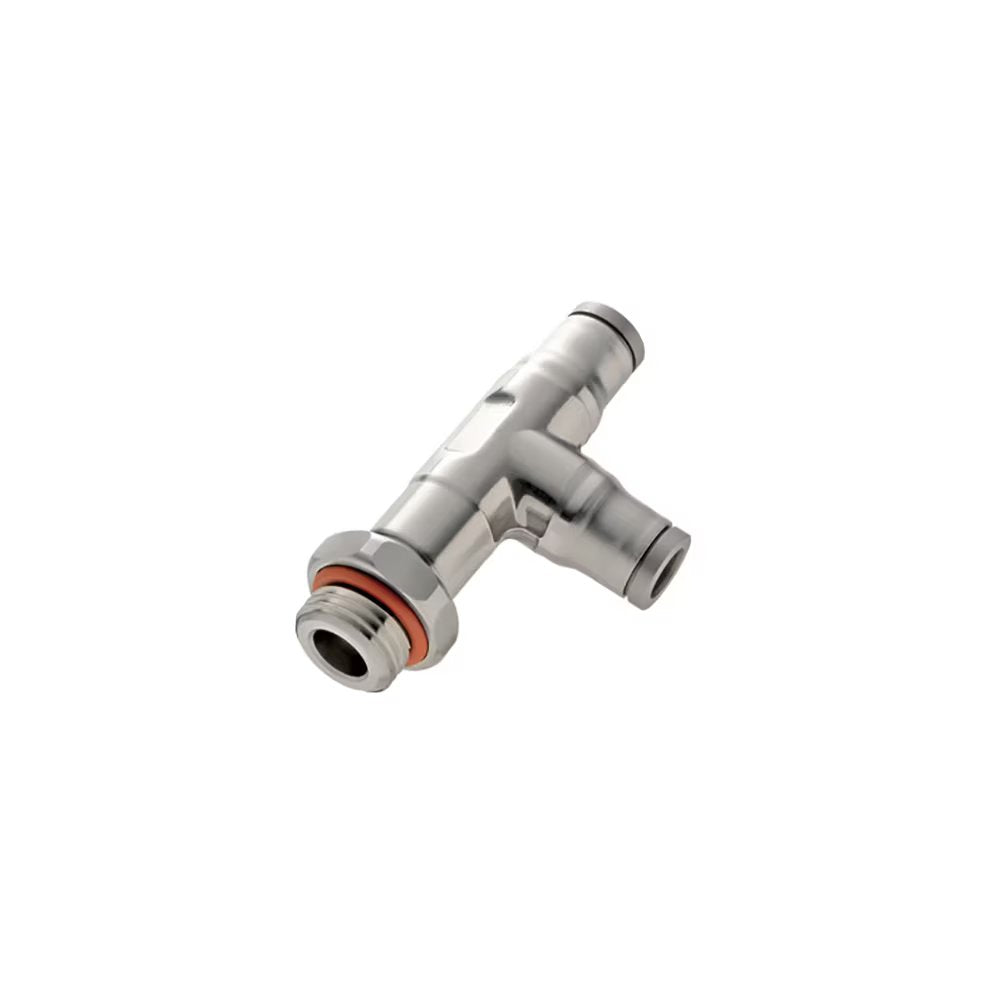

3893 08 17 by Parker | Legris Stud Swivel Fitting | 8 mm Tube Size x 3/8" Male BSPP Thread | 21 mm Hex | Tee | 316L Stainless Steel | Pack of 2

3893 08 17 by Parker | Legris Stud Swivel Fitting | 8 mm Tube Size x 3/8" Male BSPP Thread | 21 mm Hex | Tee | 316L Stainless Steel | Pack of 2

Sale price$301.64

by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3893 Stud Run Tee, Male BSPP and Metric Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
5–14 $283.54
15–29 $256.39
30+ $226.23
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3893 Series
Shape:

Tee

Ends Configuration:
  • 8mm Push-to-Connect
  • 8mm Push-to-Connect
  • 3/8in Male BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD C F G H H1 L Kg
3893 08 17 8 mm 3/8" 21 mm 15 mm 27 mm 25 mm 35.5 mm .094 Kg

The body swivels for positioning purposes.
