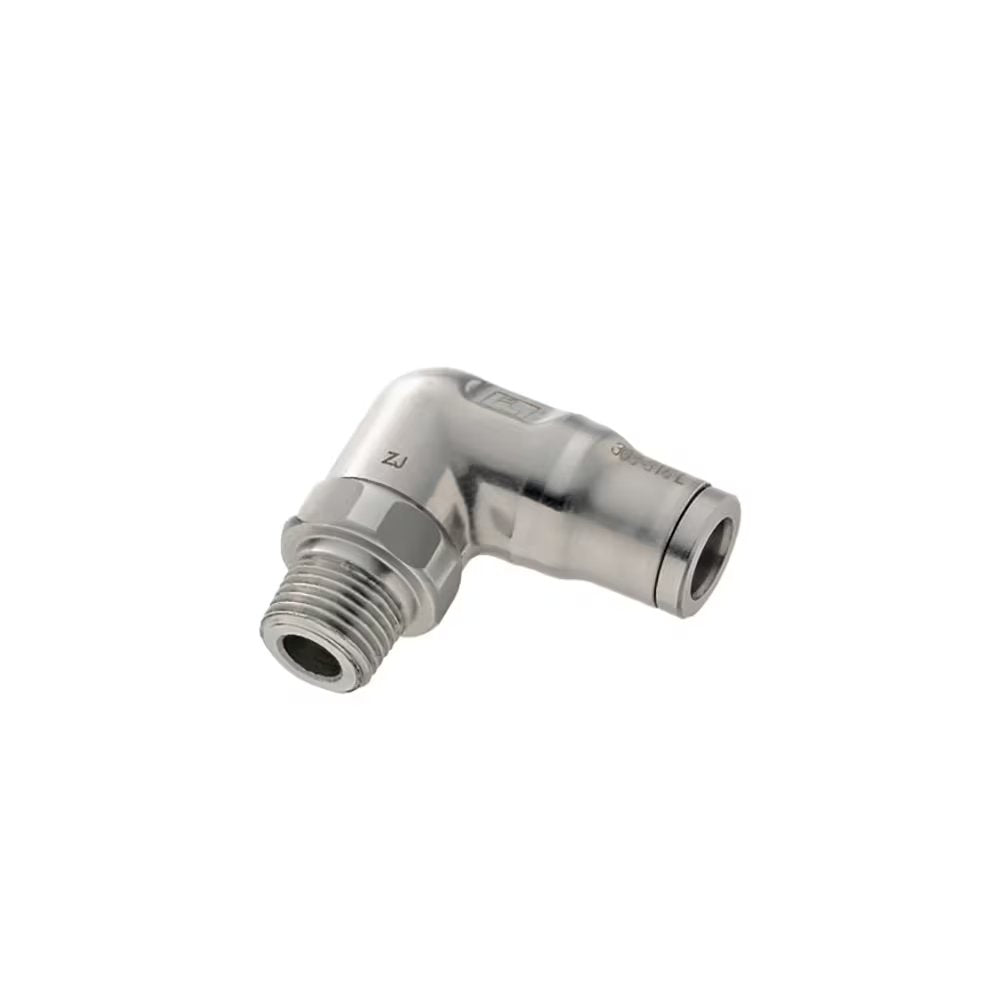

3889 56 14 by Parker | Legris Stud Swivel Fitting | 1/4" Tube Size x 1/4" Male NPT Thread | 14 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 5
by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3889 Compact Stud Elbow, Male NPT Thread
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $481.55 |
| 15–29 | $435.45 |
| 30+ | $384.22 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | F | G | H | L | Kg |
| 3889 56 11 | 1/4" | 1/8" | 13 mm | 12 mm | 22 mm | 23 mm | .025 Kg |
| 3889 56 14 | 1/4" | 1/4" | 14 mm | 12 mm | 22 mm | 23 mm | .032 Kg |
| 3889 60 14 | 3/8" | 1/4" | 17 mm | 17.5 mm | 28 mm | 30.5 mm | .058 Kg |
| 3889 60 18 | 3/8" | 3/8" | 19 mm | 17.5 mm | 28 mm | 30.5 mm | .066 Kg |
| 3889 62 14 | 1/2" | 1/4" | 22 mm | 20 mm | 34 mm | 33 mm | .089 Kg |
| 3889 62 18 | 1/2" | 3/8" | 22 mm | 20 mm | 34 mm | 33 mm | .089 Kg |
| 3889 62 22 | 1/2" | 1/2" | 22 mm | 20 mm | 27 mm | 33 mm | .091 Kg |
The body swivels for positioning purposes. Max. 20 bar
