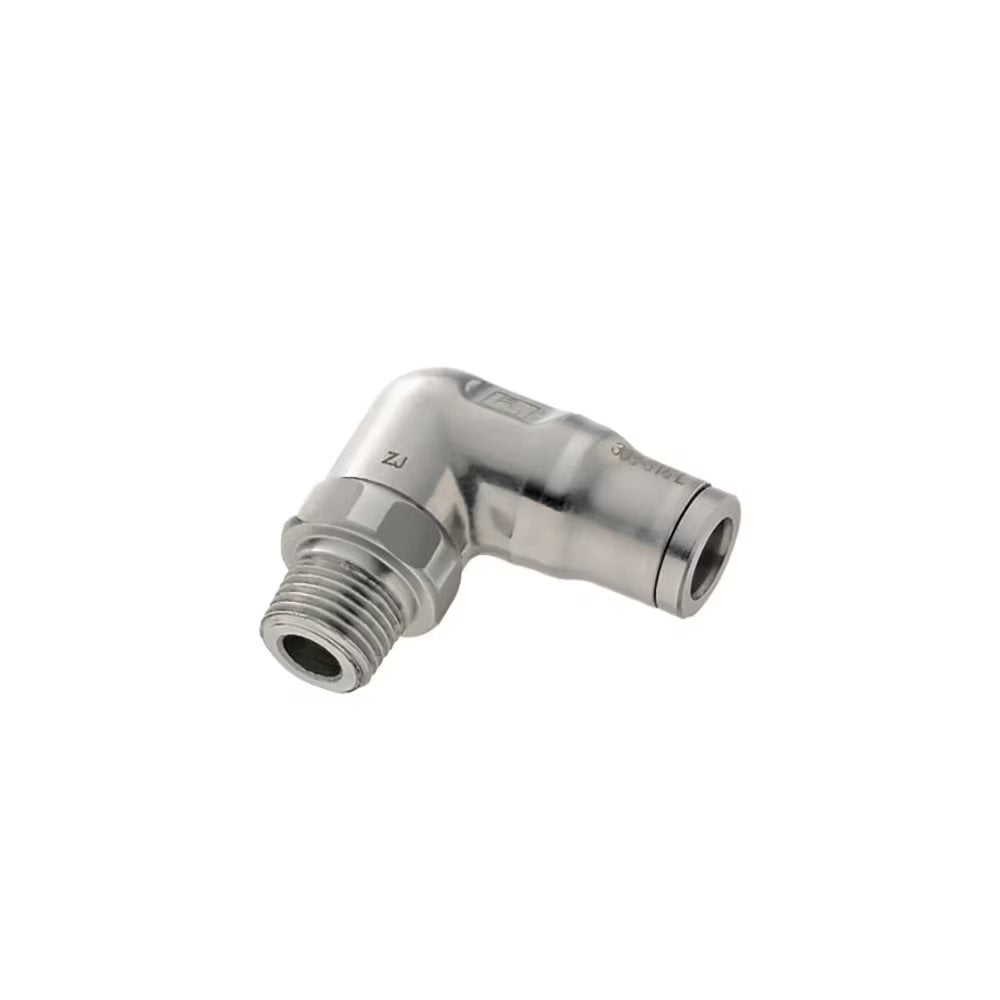

3889 56 11 by Parker | Legris Stud Swivel Fitting | 1/4" Tube Size x 1/8" Male NPT Thread | 13 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 10

3889 56 11 by Parker | Legris Stud Swivel Fitting | 1/4" Tube Size x 1/8" Male NPT Thread | 13 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 10

Sale price$911.16

by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3889 Compact Stud Elbow, Male NPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $856.49
15–29 $774.49
30+ $683.37
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3889 Series
Shape:

90° Elbow

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/8in Male NPT
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD C F G H L Kg
3889 56 11 1/4" 1/8" 13 mm 12 mm 22 mm 23 mm .025 Kg
3889 56 14 1/4" 1/4" 14 mm 12 mm 22 mm 23 mm .032 Kg
3889 60 14 3/8" 1/4" 17 mm 17.5 mm 28 mm 30.5 mm .058 Kg
3889 60 18 3/8" 3/8" 19 mm 17.5 mm 28 mm 30.5 mm .066 Kg
3889 62 14 1/2" 1/4" 22 mm 20 mm 34 mm 33 mm .089 Kg
3889 62 18 1/2" 3/8" 22 mm 20 mm 34 mm 33 mm .089 Kg
3889 62 22 1/2" 1/2" 22 mm 20 mm 27 mm 33 mm .091 Kg

The body swivels for positioning purposes. Max. 20 bar
