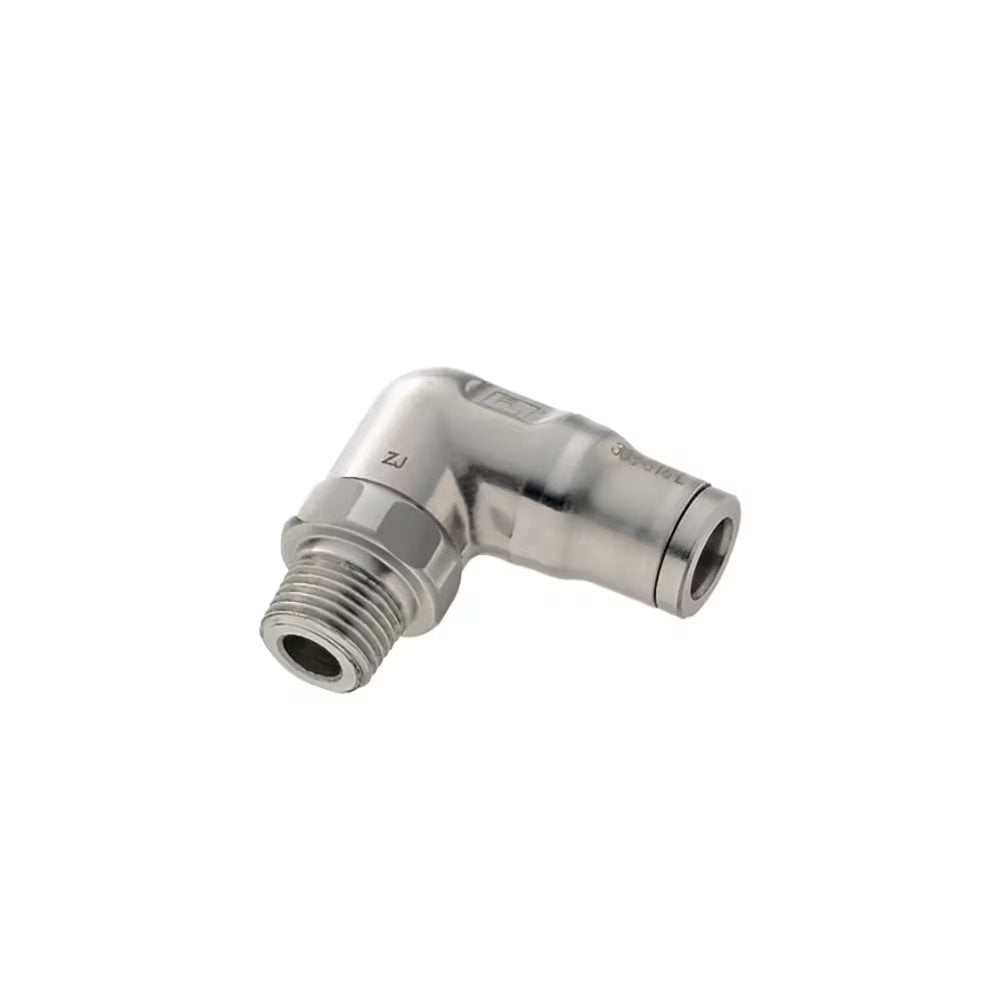

3889 10 14 by Parker | Legris Stud Swivel Fitting | 10 mm Tube Size x 1/4" Male NPT Thread | 17 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 2

3889 10 14 by Parker | Legris Stud Swivel Fitting | 10 mm Tube Size x 1/4" Male NPT Thread | 17 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 2

Sale price$261.04

by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3889 Compact Male Stud Elbow, Male NPT Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
5–14 $245.38
15–29 $221.88
30+ $195.78
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3889 Series
Shape:

90° Elbow

Ends Configuration:
  • 10mm Push-to-Connect
  • 1/4in Male NPT
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD C F G H L Kg
3889 04 11 4 mm 1/8" 13 mm 10 mm 17.5 mm 19 mm .019 Kg
3889 06 11 6 mm 1/8" 13 mm 12.5 mm 20 mm 22.5 mm .026 Kg
3889 06 14 6 mm 1/4" 14 mm 12.5 mm 20 mm 22.5 mm .033 Kg
3889 08 11 8 mm 1/8" 13 mm 15 mm 25 mm 24 mm .036 Kg
3889 08 14 8 mm 1/4" 14 mm 15 mm 24 mm 24 mm .036 Kg
3889 10 14 10 mm 1/4" 17 mm 17.5 mm 27.5 mm 27.5 mm .059 Kg
3889 10 18 10 mm 3/8" 19 mm 17.5 mm 28.5 mm 26.5 mm .068 Kg
3889 12 14 12 mm 1/4" 22 mm 20 mm 31.5 mm 32.5 mm .086 Kg
3889 12 18 12 mm 3/8" 22 mm 20 mm 32.5 mm 32.5 mm .089 Kg
3889 12 22 12 mm 1/2" 22 mm 20 mm 27.5 mm 32.5 mm .098 Kg

The body swivels for positioning purposes. Max. 20 bar
