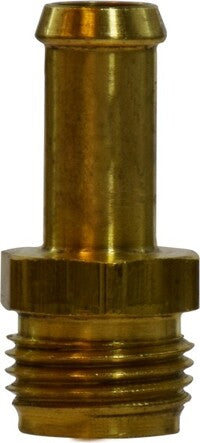

38836 by Midland | Fuel Hose Barb | Inverted Flare Connector | 3/8" Hose ID x 3/8" Male Inverted Flare | Brass
Midland Industries
Brass Fitting - Fuel Hose Barb - Inverted Flare Male Connector
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $9.05 |
| 40–79 | $8.19 |
| 80+ | $7.22 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
SPECIFICATIONS
| Applications: | Low pressure air, fuel and oil applications. Generally used for automotive, light truck, and small engine fuel lines. | Used With: | Use with fuel hose SAE 30R7 & SAE 30R9. |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | N/A |
| Vibration: | N/A | Temperature Range: | N/A |
| Tolerance: | N/A | Lead Free: | N/A |
| Advantages: | Easy to assemble, just push the fitting into the hose & clamp. Good selection of configurations at reasonable cost. | ||
| Crossover Series: | ||
|---|---|---|
| 269HB | 159IN | 291FSB |
| Part Number | Hose ID | Male Inverted Flare | IND # |
|---|---|---|---|
| 38828 (38-828) |
5/16" | 1/4" | 1598 |
| 38830 (38-830) |
5/16" | 5/16" | 1560 |
| 38832 (38-832) |
5/16" | 3/8" | 1561 |
| 38834 (38-834) |
3/8" | 5/16" | 1568 |
| 38836 (38-836) |
3/8" | 3/8" | 1570 |
