38808 by Midland | Fuel Hose Barb | Connector | 5/16" Hose ID x 1/4" Male Pipe | Brass
Minimum Order Quantity: 5 Units
Midland Industries

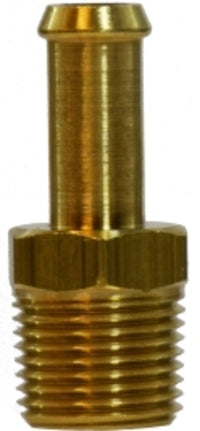

Brass Fitting - Fuel Hose Barb - Male Connector
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $2.61 |
| 40–79 | $2.36 |
| 80+ | $2.09 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
SPECIFICATIONS
| Applications: | Low pressure air, fuel and oil applications. Generally used for automotive, light truck, and small engine fuel lines. | Used With: | Use with fuel hose SAE 30R7 & SAE 30R9. |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | N/A |
| Vibration: | N/A | Temperature Range: | N/A |
| Tolerance: | N/A | Lead Free: | N/A |
| Advantages: | Easy to assemble, just push the fitting into the hose & clamp. Good selection of configurations at reasonable cost. | ||
| Crossover Series: | ||
|---|---|---|
| 68HB | 159 | 29SB |
| Part Number | Hose ID | Male NPT Thread |
|
|---|---|---|---|
| 38800 (38-800) |
3/16" | 1/8" | 1541 |
| 38802 (38-802) |
1/4" | 1/8" | 1537 |
| 32377 (32-377) |
1/4" | 1/4" | 1581 |
| 38806 (38-806) |
5/16" | 1/8" | 1551 |
| 38808 (38-808) |
5/16" | 1/4" | 1555 |
| 38810 (38-810) |
3/8" | 1/8" | 1565 |
| 32381 (32-381) |
3/8" | 1/4" | 1564 |
| 32382 (32-382) |
3/8" | 3/8" | 1566 |
| 32383 (32-383) |
1/2" | 3/8" | - |
| 32384 (32-384) |
1/2" | 1/2" | - |
| 32385 (32-385) |
5/8" | 1/2" | 1431 |
| 32387 (32-387) |
3/4" | 1/2" | 1430 |
| 32388 (32-388) |
3/4" | 3/4" | - |
