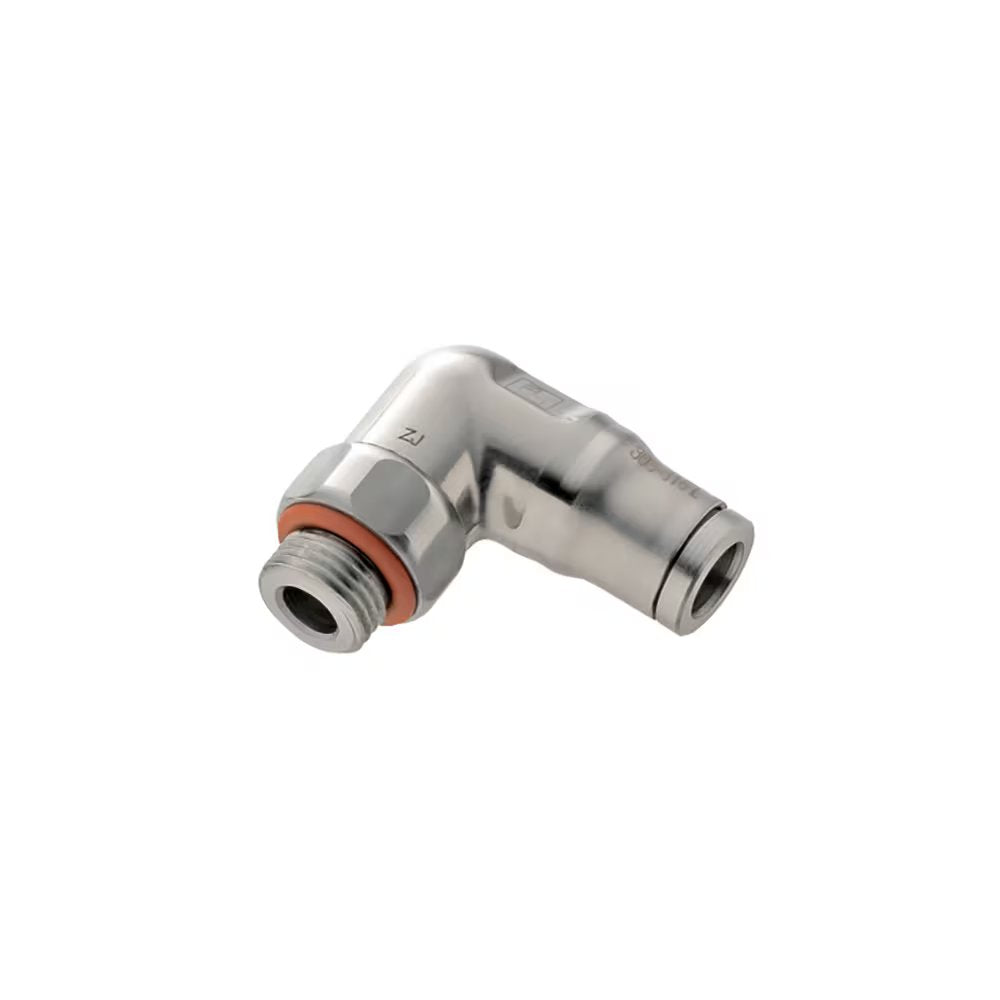

3879 10 13 by Parker | Legris Stud Swivel Fitting | 10 mm Tube Size x 1/4" Male BSPP Thread | 18 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 2

3879 10 13 by Parker | Legris Stud Swivel Fitting | 10 mm Tube Size x 1/4" Male BSPP Thread | 18 mm Hex | 90° Elbow | 316L Stainless Steel | Pack of 2

Sale price$289.99

by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3879 Compact Stud Elbow, Male BSPP Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
5–14 $272.59
15–29 $246.49
30+ $217.49
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3879 Series
Shape:

90° Elbow

Ends Configuration:
  • 10mm Push-to-Connect
  • 1/4in Male BSPP
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD C F G H L Kg
3879 04 10 4 mm 1/8" 13 mm 11 mm 22 mm 19 mm .022 Kg
3879 04 13 4 mm 1/4" 17 mm 11 mm 20 mm 19 mm .027 Kg
3879 06 10 6 mm 1/8" 13 mm 12 mm 24 mm 24 mm .029 Kg
3879 06 13 6 mm 1/4" 17 mm 12 mm 22 mm 24 mm .034 Kg
3879 08 10 8 mm 1/8" 13 mm 15 mm 25 mm 25 mm .035 Kg
3879 08 13 8 mm 1/4" 17 mm 15 mm 25 mm 25 mm .039 Kg
3879 08 17 8 mm 3/8" 21 mm 15 mm 23 mm 25 mm .047 Kg
3879 10 13 10 mm 1/4" 18 mm 17 mm 28.5 mm 31 mm .057 Kg
3879 10 17 10 mm 3/8" 21 mm 17 mm 28.5 mm 31 mm .065 Kg
3879 12 13 12 mm 1/4" 17 mm 20 mm 33 mm 33 mm .077 Kg
3879 12 17 12 mm 3/8" 21 mm 20 mm 33 mm 33 mm .084 Kg
3879 12 21 12 mm 1/2" 24 mm 20 mm 30 mm 33 mm .096 Kg

The body swivels for positioning purposes. Max. 20 bar
