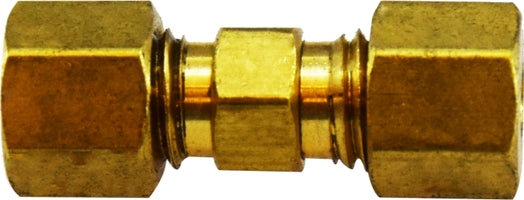

38761 by Midland | Split Sleeve DOT Fitting | Double End Union | 5/32" Tube OD | Brass

38761 by Midland | Split Sleeve DOT Fitting | Double End Union | 5/32" Tube OD | Brass

Sale price$16.17

Midland Industries
Brass Fitting - Split Sleeve D.O.T. Fitting - Double End Union - Brass

Transmission Brass Fitting
Buy More, Save More!
Quantity Price Each
10–39 $15.20
40–79 $13.74
80+ $12.13
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 5/32in Tube Compression
  • 5/32in Tube Compression
  • Some Ends Match
Material(s):
  • Brass

SPECIFICATIONS

Applications: Ideally suited for use in passive protected air transmission applications. A specially designed slotted sleeve helps eliminate notch stress related to over torque. Used With: Used with SAE J844 Type A nylon tube in pressure protected air transmission applications.
SAE Rating: SAE J844 Conformance: N/A
Vibration: Withstands variations from -40°F to +220°F (-40°C to + 104°C) Temperature Range: -40°F to +220°F (-40°C to + 104°C)
Lead Free: These are NOT Lead Free Tolerance: N/A
Features:
  • Maximum working pressure up to 150 PSI.
Crossover Series:
1462 90792 283 90891
Part Number Tube O.D
38761
(38-761)		 5/32"
25062
(25-062)		 1/8"

NOTE: 25 prefix parts do not have a stake, use 38 part number with white sealant only.

Dimension data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
