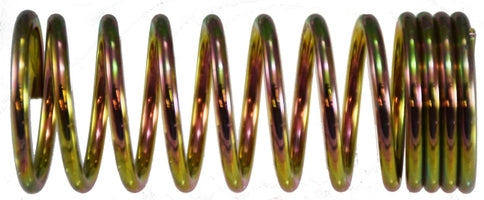

38352 by Midland | DOT Air Brake Reusable Hose Fitting | Spring | 1/2" Hose ID | Brass

38352 by Midland | DOT Air Brake Reusable Hose Fitting | Spring | 1/2" Hose ID | Brass

Minimum Order Quantity: 5 Units

Sale price$4.68

Midland Industries
Brass Fitting - D.O.T. Air Brake Reusable Hose Fitting - Spring - Brass
Buy More, Save More!
Quantity Price Each
20–39 $4.40
40–79 $3.98
80+ $3.51
Discounts applied in cart/checkout.

Product Data:

Shape:

No Orientation

Material(s):
  • Brass
Specifications and Approvals:
  • Applicable D.O.T. Requirements
  • Applicable SAE Standards

SPECIFICATIONS

Applications: Air Brake hose connections. Advantages: Can be used for nearly any brake line. Easy to assemble with a good selection of hose end configurations. Brass material offers excellent resistance against corrosion.
SAE Rating: N/A Conformance: Meets SAE & DOT specifications (FMVCS 10 GAL)
Pressure: Determined by maximum working pressure for hose size. Up to 125 psi Temperature Range: -40°F to + 120°F ( -40°C to +48°C )
Tolerance: +/- .02 on all dimensions.
Assembly Instructions:
  • 1) Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward fitting.
  • 2) Push hose into fitting until it bottoms.
  • 3) Screw nut until contact is made with body hex.
  • NOTE: When reassembling fitting, body and nut should be inspected. Only reuse if in proper condition. Sleeves should never be reused.
Crossover Series:
61HSG HE61G #60SG 0901045 3380-C 377
Part Number Hose I.D. Size Approx. Weight
(Lbs.)
38351
(38-351)		 3/8" 0.20
38352
(38-352)		 1/2" 0.22

Dimension Data can change without notice.
