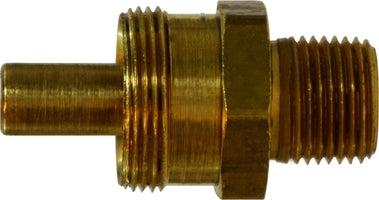

38326 by Midland | DOT Air Brake Reusable Hose Fitting | Body | 3/8" Hose ID x 1/2" Male Pipe | Adapter | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - D.O.T. Air Brake Reusable Hose Fitting - Adapter Body - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $7.37 |
| 40–79 | $6.66 |
| 80+ | $5.88 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Air Brake hose connections. | Advantages: | Can be used for nearly any brake line. Easy to assemble with a good selection of hose end configurations. Brass material offers excellent resistance against corrosion. |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets SAE & DOT specifications (FMVCS 10 GAL) |
| Pressure: | Determined by maximum working pressure for hose size. Up to 125 psi | Temperature Range: | -40°F to + 120°F ( -40°C to +48°C ) |
| Tolerance: | +/- .02 on all dimensions. |
| Assembly Instructions: | |||
|---|---|---|---|
|
| Crossover Series: | |||
|---|---|---|---|
| 68HEB | HE68B | #68B | W1391Z |
| Part Number | Hose ID x Male Pipe | Approx. Weight (Lbs.) |
|---|---|---|
| 38324 (38-324) |
3/8" x 1/4" | 0.12 |
| 38325 (38-325) |
3/8" x 3/8" | 0.14 |
| 38326 (38-326) |
3/8" x 1/2" | 0.20 |
| 38327 (38-327) |
1/2" x 3/8" | 0.18 |
| 38328 (38-328) |
1/2" x 1/2" | 0.20 |
Dimension Data can change without notice.
