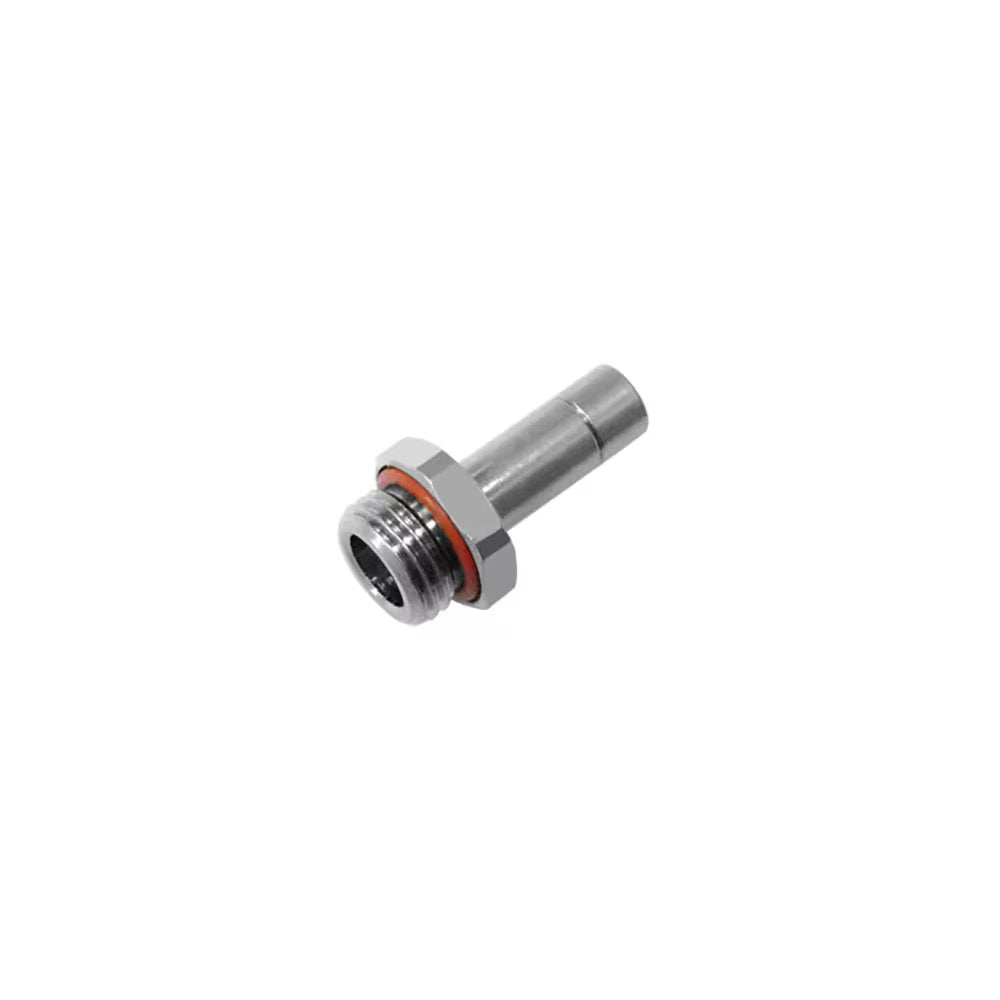

3831 04 10 by Parker | Legris Stud Standpipe | 4mm Tube Size x 1/8" Male BSPP Thread | 13mm Hex | Straight | 316L Stainless Steel | Pack of 2
by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3831 Stud Standpipe, Male BSPP and Metric Thread
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $79.87 |
| 30–59 | $72.22 |
| 60+ | $63.73 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | ØD | C | F | H | Kg |
| 3831 04 19 | 4 mm | M5x0.8 | 10 mm | 23.5 mm | .004 Kg |
| 3831 04 10 | 4 mm | 1/8" | 13 mm | 22 mm | .008 Kg |
| 3831 06 10 | 6 mm | 1/8" | 13 mm | 24 mm | .009 Kg |
| 3831 06 13 | 6 mm | 1/4" | 17 mm | 24 mm | .015 Kg |
| 3831 08 10 | 8 mm | 1/8" | 13 mm | 25 mm | .010 Kg |
| 3831 08 13 | 8 mm | 1/4" | 17 mm | 27 mm | .019 Kg |
| 3831 10 13 | 10 mm | 1/4" | 17 mm | 32 mm | .021 Kg |
| 3831 10 17 | 10 mm | 3/8" | 21 mm | 32 mm | .025 Kg |
| 3831 12 13 | 12 mm | 1/4" | 17 mm | 33 mm | .021 Kg |
| 3831 12 17 | 12 mm | 3/8" | 21 mm | 33 mm | .028 Kg |
| 3831 12 21 | 12 mm | 1/2" | 24 mm | 36 mm | .043 Kg |
