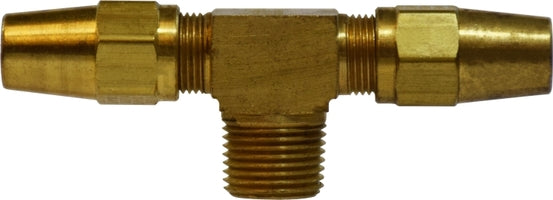

38278 by Midland | DOT Air Brake Fitting | Copper Tubing | Branch 3/8" Tube OD x 3/8" Tube OD x 1/4" Male NPTF | Tee | Brass
Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Copper Tubing) - Male Branch Tee - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.76 |
| 40–79 | $10.63 |
| 80+ | $9.38 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| SAE Rating: | SAE# 120425BA | Tolerance: | +/- .02 on all dimensions |
|---|
| Crossover Series: | |||
|---|---|---|---|
| 72AB | AB72 | 272AB | 1372 |
 |
||||
|---|---|---|---|---|
| Part Number | Tube OD x Male NPTF | A | B | Approx. Weight (Lbs.) |
| 38278 (38-278) |
3/8" x 1/4" | 0.78" | 0.91" | 0.18 |
| 38279 (38-279) |
3/8" x 3/8" | 0.85" | 0.92" | 0.24 |
Dimension data can change without notice.
