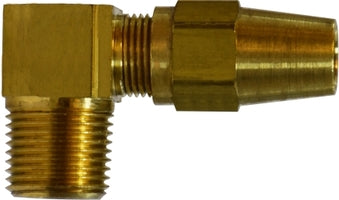

38246 by Midland | DOT Air Brake Fitting | Copper Tubing | 5/8" Tube OD x 1/2" Male NPTF | 90° Elbow | Brass
Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Copper Tubing) - Male 90° Elbow - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $24.06 |
| 40–79 | $21.76 |
| 80+ | $19.20 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| SAE Rating: | SAE# 120202BA | Tolerance: | +/- .02 on all dimensions |
|---|
| Crossover Series: | |||
|---|---|---|---|
| 69AB | AB69 | 269AB | 1369 |
 |
||||
|---|---|---|---|---|
| Part Number | Tube OD x Male NPTF | A | B | Approx. Weight (Lbs.) |
| 38235 (38-235) |
1/4" x 1/8" | 0.64" | 0.76" | 0.08 |
| 38236 (38-236) |
1/4" x 1/4" | 0.69" | 0.88" | 0.10 |
| 38237 (38-237) |
1/4" x 3/8" | 0.73" | 0.86" | 0.14 |
| 38239 (38-239) |
3/8" x 1/4" | 0.80" | 0.93" | 0.12 |
| 38240 (38-240) |
3/8" x 3/8" | 0.83" | 0.90" | 0.16 |
| 38241 | 3/8" x 1/2" | - | - | 0.22 |
| 38243 (38-243) |
1/2" x 3/8" | 0.92" | 0.98" | 0.22 |
| 38244 (38-244) |
1/2" x 1/2" | 1.04" | 1.19" | 0.30 |
| 38246 (38-246) |
5/8" x 1/2" | 1.10" | 1.25" | 0.36 |
Dimension data can change without notice.
