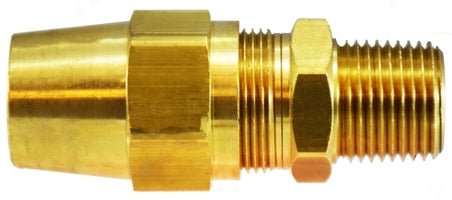

38228 by Midland | DOT Air Brake Fitting | Copper Tubing | 5/8" Tube OD x 1/2" Male NPTF | Adapter | Brass
Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Copper Tubing) - Male Adapter - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.88 |
| 40–79 | $16.17 |
| 80+ | $14.27 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
| SAE Rating: | SAE# 120102BA | Tolerance: | +/- .02 on all dimensions |
|---|
| Crossover Series: | ||
|---|---|---|
| 68AB | AB68 | 368 |
 |
||||
|---|---|---|---|---|
| Part Number | Tube OD x Male NPTF | A | Hex | Approx. Weight (Lbs.) |
| 38217 (38-217) |
1/4" x 1/8" | 0.88" | 0.43" | 0.06 |
| 38218 (38-218) |
1/4" x 1/4" | 0.97" | 0.56" | 0.08 |
| 38221 (38-221) |
3/8" x 1/4" | 1.09" | 0.56" | 0.10 |
| 38222 (38-222) |
3/8" x 3/8" | 1.19" | 0.69" | 0.12 |
| 38223 (38-223) |
3/8" x 1/2" | 1.45" | 0.87" | 0.18 |
| 38224 (38-224) |
1/2" x 1/4" | 1.32" | 0.69" | 0.16 |
| 38225 (38-225) |
1/2" x 3/8" | 1.35" | 0.69" | 0.18 |
| 38226 (38-226) |
1/2" x 1/2" | 1.51" | 0.87" | 0.24 |
| 38227 (38-227) |
5/8" x 3/8" | 1.39" | 0.81" | 0.22 |
| 38228 (38-228) |
5/8" x 1/2" | 1.57" | 0.87" | 0.24 |
| 38229 (38-229) |
3/4" x 1/2" | 1.67" | 1.00" | 0.34 |
Dimension data can change without notice.
