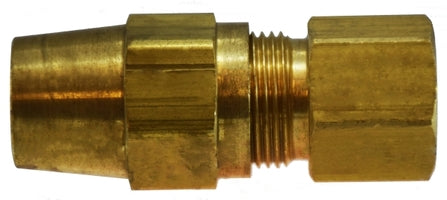

38212 by Midland | DOT Air Brake Fitting (Copper Tubing) | Female Adapter | 5/8" Tube OD x 1/2" Female NPTF | Straight | Brass
Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Copper Tubing) - Female Adapter - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $27.11 |
| 40–79 | $24.51 |
| 80+ | $21.63 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
| SAE Rating: | SAE# 120103BA | Tolerance: | +/- .02 on all dimensions |
|---|
| Crossover Series: | ||
|---|---|---|
| 66AB | AB66 | 1366 |
 |
||||
|---|---|---|---|---|
| Part Number | Tube OD x Female NPTF | A | Hex | Approx. Weight (Lbs.) |
| 38204 | 1/4" x 1/8" | 0.84" | 0.56" | 0.08 |
| 38205 | 1/4" x 1/4" | 1.07" | 0.68" | 0.10 |
| 38206 | 3/8" x 1/8" | 1.00" | 0.56" | 0.10 |
| 38207 (38-207) |
3/8" x 1/4" | 1.19" | 0.68" | 0.12 |
| 38208 (38-208) |
3/8" x 3/8" | 1.18" | 0.87" | 0.16 |
| 38209 (38-209) |
1/2" x 3/8" | 1.27" | 0.87" | 0.18 |
| 38210 | 1/2" x 1/2" | 1.44" | 1.06" | 0.20 |
| 38211 | 5/8" x 3/8" | 1.31" | 0.87" | 0.24 |
| 38212 | 5/8" x 1/2" | 0.50" | 1.06" | 0.26 |
| 38213 | 3/4" x 1/2" | - | - | - |
Dimension data can change without notice.
