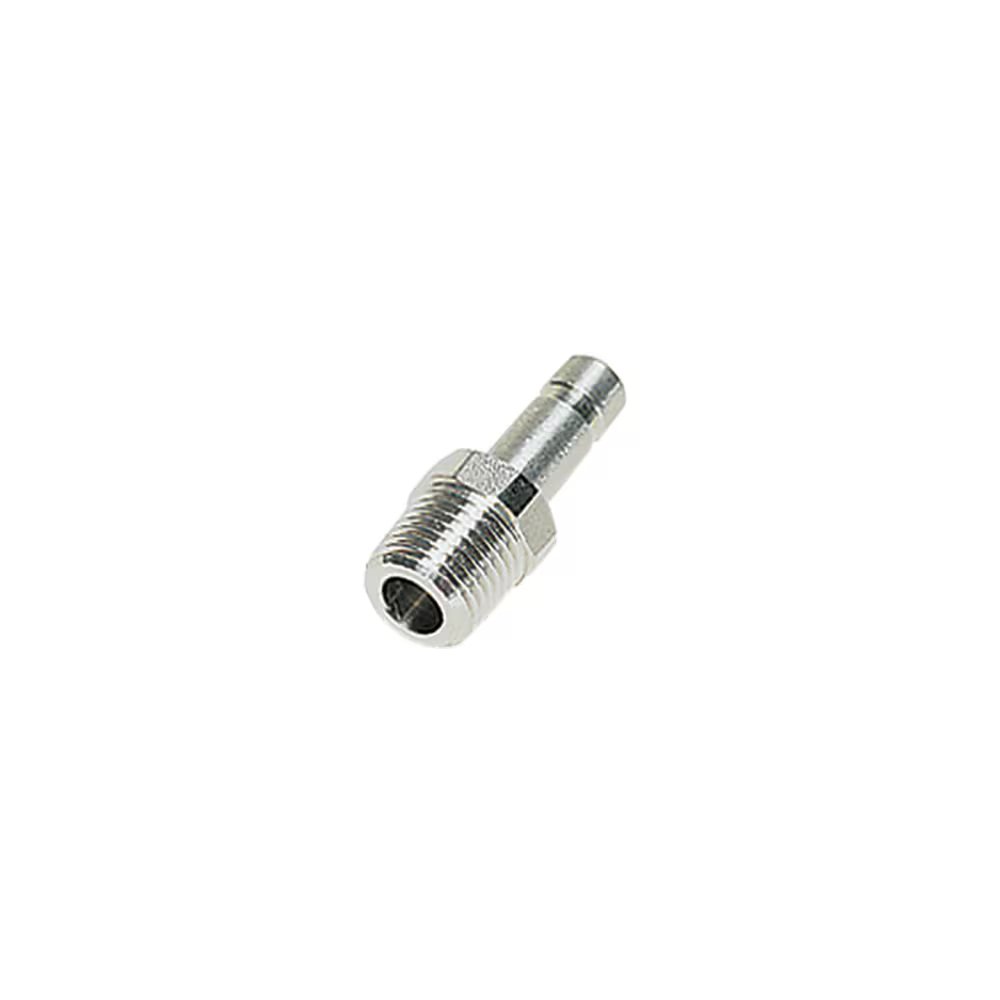

3821 10 13 by Parker | Legris Stud Standpipe | 10 mm Tube Size x 1/4" Male BSPT Thread | 19 mm Hex | Straight | 316L Stainless Steel | Pack of 2
by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3821 Stud Standpipe, Male BSPT Thread
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $91.16 |
| 30–59 | $82.43 |
| 60+ | $72.74 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | ØD | C | F | H | Kg |
| 3821 04 10 | 4 mm | 1/8" | 10 mm | 21 mm | .006 Kg |
| 3821 06 10 | 6 mm | 1/8" | 10 mm | 23 mm | .007 Kg |
| 3821 06 13 | 6 mm | 1/4" | 14 mm | 24 mm | .015 Kg |
| 3821 08 10 | 8 mm | 1/8" | 11 mm | 24 mm | .008 Kg |
| 3821 08 13 | 8 mm | 1/4" | 14 mm | 25 mm | .016 Kg |
| 3821 10 13 | 10 mm | 1/4" | 19 mm | 30 mm | .017 Kg |
| 3821 10 17 | 10 mm | 3/8" | 19 mm | 30 mm | .022 Kg |
| 3821 12 13 | 12 mm | 1/4" | 19 mm | 31 mm | .017 Kg |
| 3821 12 17 | 12 mm | 3/8" | 19 mm | 31 mm | .022 Kg |
| 3821 12 21 | 12 mm | 1/2" | 22 mm | 32 mm | .037 Kg |
