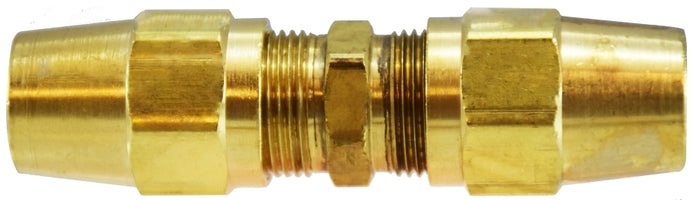

38182 by Midland | DOT Air Brake Fitting | Copper Tubing | Union | 5/8" Tube OD | Brass
Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Copper Tubing) - Union - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $21.65 |
| 40–79 | $19.58 |
| 80+ | $17.27 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| SAE Rating: | SAE# 120101BA | Tolerance: | +/- .02 on all dimensions |
|---|
| Crossover Series: | ||
|---|---|---|
| 62AB | AB62 | 1362 |
 |
||||
|---|---|---|---|---|
| Part Number | Tube OD | A | Hex | Approx. Weight (Lbs.) |
| 38179 (38-179) |
1/4" | 0.81" | 0.44" | 0.08 |
| 38180 (38-180) |
3/8" | 1.10" | 0.56" | 0.14 |
| 38181 (38-181) |
1/2" | 1.07" | 0.69" | 0.24 |
| 38182 (38-182) |
5/8" | 1.41" | 0.81" | 0.34 |
| 38183 (38-183) |
3/4" | - | - | 0.54 |
Dimension data can change without notice.
