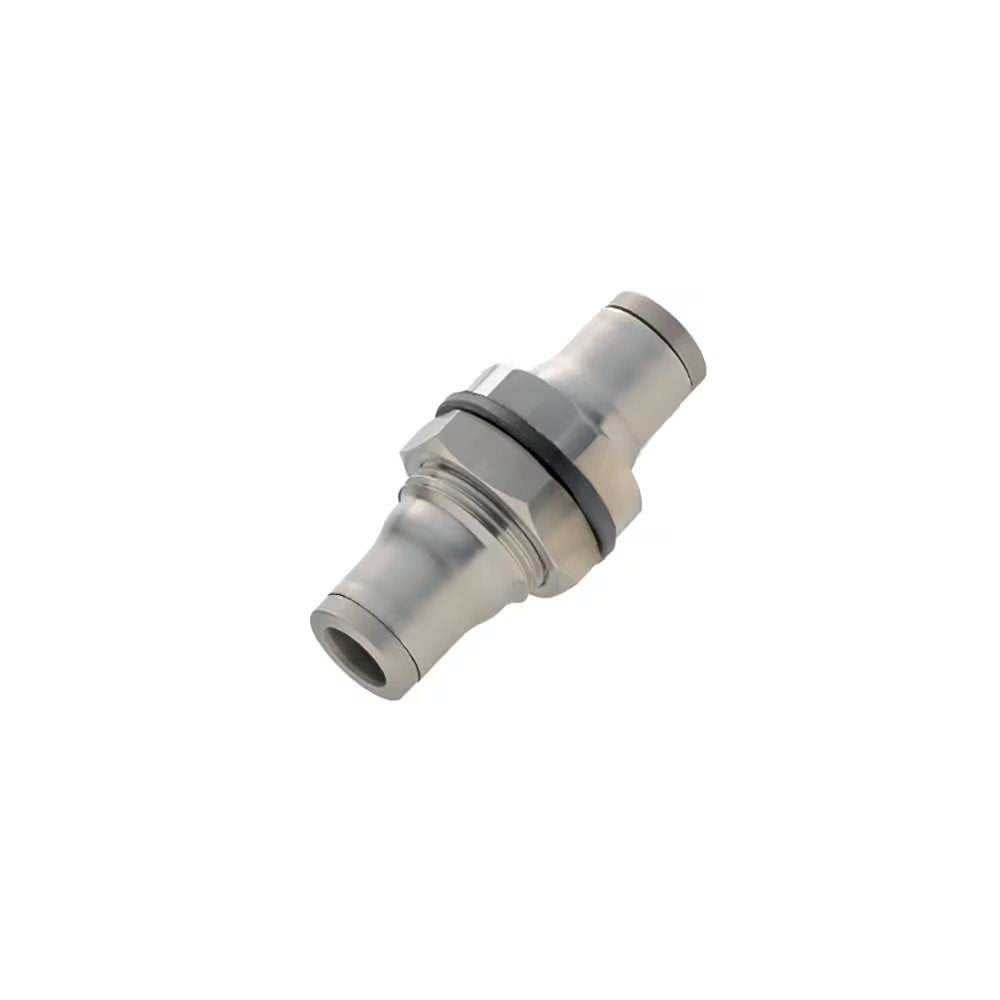

3816 56 00 by Parker | Legris Bulkhead Connector | 1/4" Tube Size | 37 mm Length | Straight | 316L Stainless Steel | Pack of 5

3816 56 00 by Parker | Legris Bulkhead Connector | 1/4" Tube Size | 37 mm Length | Straight | 316L Stainless Steel | Pack of 5

Sale price$722.89

by Parker Hannifin
LF 3800 Push-In Fittings / Bulkhead Fittings:3816 Equal Bulkhead Connector

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–14 $679.52
15–29 $614.46
30+ $542.17
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3816 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD F F1 L1 L2 ØT Kg
3816 56 00 1/4" 19 mm 17 mm 19 mm 21 mm 15 mm .027 Kg
3816 60 00 3/8" 22 mm 22 mm 22 mm 27 mm 21 mm .052 Kg
3816 62 00 1/2" 27 mm 27 mm 25 mm 28 mm 25 mm .076 Kg

IP55 sealing
