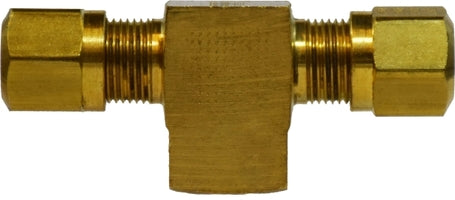

38146 by Midland | DOT Air Brake Fitting | Nylon Tubing | Female Branch 5/8" Tube OD x 5/8" Tube OD x 1/4" Female NPTF | Tee | Brass

38146 by Midland | DOT Air Brake Fitting | Nylon Tubing | Female Branch 5/8" Tube OD x 5/8" Tube OD x 1/4" Female NPTF | Tee | Brass

Sale price$73.75

Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Nylon Tubing) - Female Branch Tee - Brass

Easy to assemble (no tube preparation or flaring required.) Built in tube support. Fittings utilize a ribbed sleeve for compression and positive grip. May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve. Insert should be removed for copper tubing use.
Buy More, Save More!
Quantity Price Each
10–39 $69.33
40–79 $62.69
80+ $55.31
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 5/8in Tube Compression
  • 5/8in Tube Compression
  • 1/4in Female NPTF
  • Some Ends Match
Material(s):
  • Brass

SPECIFICATIONS

Applications: Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing. Used With: NT Nylon Tubing - SAE J844 Type A and B.
SAE Rating: N/A Conformance: Meets specifications and standards of SAE and DOT FMVSS 571,106.
Vibration: Fair Resistance. Temperature Range: -40°F to +200°F (-40°C to +93°C)
Tolerance: +/- .02 on all dimensions Pressure: Maximum operating pressure of 150 PSI
Tube OD 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size - B 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Assembly Instructions:
  • 1) Cut tubing to desired length.
  • 2) Slide nut and then sleeve on tubing. Threaded end of nut "A" must face toward fitting body.
  • 3) Insert tubing into the preassembled fitting. Be sure tubing is bottomed in fitting.
  • 4) Tighten nut to required torque as indicated on chart.
  • Disassembling: Remove nut and pull tubing out of fitting body. Insert will remain in tubing.
  • Reassembly: Push tubing and insert into fitting body until it bottoms. Thread nut onto fitting body.
Part Number Tube OD x Tube OD x Female NPTF
(1 x 2 x 3)		 Approx. Weight
(Lbs.)
38144
(38-144)		 3/8" x 3/8" x 1/4" 0.21
38146
(38-146) 		5/8" x 5/8" x 1/4" 0.37

Dimension data can change without notice.
