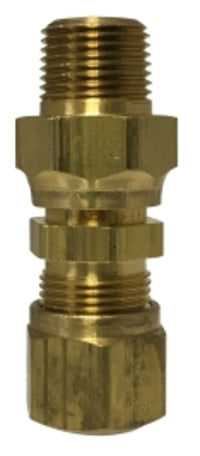

38081S by Midland | DOT Air Brake Fitting | Nylon Tubing | Swivel | 1/2" Tube OD x 3/8" Male NPTF | Adapter | Brass

38081S by Midland | DOT Air Brake Fitting | Nylon Tubing | Swivel | 1/2" Tube OD x 3/8" Male NPTF | Adapter | Brass

Sale price$25.99
Buy more, save moreDiscounts applied in cart/checkout.

SPECIFICATIONS

Applications: Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing. Used With: NT Nylon Tubing - SAE J844 Type A and B.
SAE Rating: SAE# 100102BA Conformance: Meets specifications and standards of SAE and DOT FMVSS 571,106.
Vibration: Fair Resistance. Temperature Range: -40°F to +200°F (-40°C to +93°C)
Tolerance: +/- .02 on all dimensions Pressure: Maximum operating pressure of 150 PSI
Tube OD 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size - B 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Assembly Instructions:
  • 1) Cut tubing to desired length.
  • 2) Slide nut and then sleeve on tubing. Threaded end of nut "A" must face toward fitting body.
  • 3) Insert tubing into the preassembled fitting. Be sure tubing is bottomed in fitting.
  • 4) Tighten nut to required torque as indicated on chart.
  • Disassembling: Remove nut and pull tubing out of fitting body. Insert will remain in tubing.
  • Reassembly: Push tubing and insert into fitting body until it bottoms. Thread nut onto fitting body.
Part Number Tube OD x Male NPTF Approx. Weight
(Lbs.)
38078S
(38-078S)		 3/8" x 3/8" 0.18
38081S
(38-081S) 		1/2" x 3/8" 0.22

Dimension data can change without notice.

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Tube Compression
  • 3/8in Male NPTF
Material(s):
  • Brass

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
