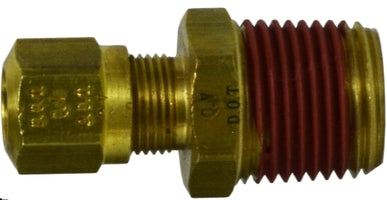

38079 by Midland | DOT Air Brake Fitting | Nylon Tubing | 3/8" Tube OD x 1/2" Male NPTF | Adapter | Brass
Minimum Order Quantity: 5 Units
Buy more, save moreDiscounts applied in cart/checkout.
SPECIFICATIONS
| Applications: | Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing. | Used With: | NT Nylon Tubing - SAE J844 Type A and B. |
|---|---|---|---|
| SAE Rating: | SAE# 100102BA | Conformance: | Meets specifications and standards of SAE and DOT FMVSS 571,106. |
| Vibration: | Fair Resistance. | Temperature Range: | -40°F to +200°F (-40°C to +93°C) |
| Tolerance: | +/- .02 on all dimensions | Pressure: | Maximum operating pressure of 150 PSI |
| Tube OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" |
|---|---|---|---|---|---|
| Thread Size - B | 7/16-24 | 17/32-24 | 11/16-20 | 13/16-18 | 1-18 |
| Assembly Instructions: | |||
|---|---|---|---|
|
| Crossover Series: | ||||
|---|---|---|---|---|
| 68NA | NT68VS | 68NAB | 68NTA | 1468 |
| Part Number | Tube OD x Male NPTF | Approx. Weight (Lbs.) |
|---|---|---|
| 38072 (38-072) |
1/4" x 1/16" | 0.05 |
| 38073 (38-073) |
1/4" x 1/8" | 0.05 |
| 38074 (38-074) |
1/4" x 1/4" | 0.06 |
| 38075 (38-075) |
1/4" x 3/8" | 0.08 |
| 38076 (38-076) |
3/8" x 1/8" | 0.07 |
| 38077 (38-077) |
3/8" x 1/4" | 0.08 |
| 38078 (38-078) |
3/8" x 3/8" | 0.10 |
| 38079 (38-079) |
3/8" x 1/2" | 0.14 |
| 38080 (38-080) |
1/2" x 1/4" | 0.13 |
| 38081 (38-081) |
1/2" x 3/8" | 0.14 |
| 38082 (38-082) |
1/2" x 1/2" | 0.18 |
| 38087 (38-087) |
1/2" x 3/4" | 0.23 |
| 38083 (38-083) |
5/8" x 3/8" | 0.17 |
| 38084 (38-084) |
5/8" x 1/2" | 0.21 |
| 38088 (38-088) |
5/8" x 3/4" | 0.25 |
| 38085 (38-085) |
3/4" x 1/2" | 0.28 |
| 38086 | 3/4" x 3/4" | 0.30 |
Dimension data can change without notice.
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
