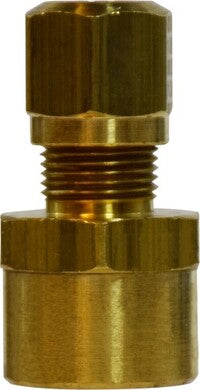

38068 by Midland | DOT Air Brake Fitting | Nylon Tubing | 5/8" Tube OD x 1/2" Female NPT | Adapter | Brass

38068 by Midland | DOT Air Brake Fitting | Nylon Tubing | 5/8" Tube OD x 1/2" Female NPT | Adapter | Brass

Sale price$22.63
Buy more, save moreDiscounts applied in cart/checkout.

SPECIFICATIONS

Applications: Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing. Used With: NT Nylon Tubing - SAE J844 Type A and B.
SAE Rating: SAE# 100103BA Conformance: Meets specifications and standards of SAE and DOT FMVSS 571,106.
Vibration: Fair Resistance. Temperature Range: -40°F to +200°F (-40°C to +93°C)
Tolerance: +/- .02 on all dimensions Pressure: Maximum operating pressure of 150 PSI
Tube OD 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size - B 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Assembly Instructions:
  • 1) Cut tubing to desired length.
  • 2) Slide nut and then sleeve on tubing. Threaded end of nut "A" must face toward fitting body.
  • 3) Insert tubing into the preassembled fitting. Be sure tubing is bottomed in fitting.
  • 4) Tighten nut to required torque as indicated on chart.
  • Disassembling: Remove nut and pull tubing out of fitting body. Insert will remain in tubing.
  • Reassembly: Push tubing and insert into fitting body until it bottoms. Thread nut onto fitting body.
Crossover Series:
66NA NT66 66NAB 66NTA 1466 66NBH
Part Number Tube OD x Female NPT Approx. Weight
(Lbs.)
38060
(38-060) 		1/4" x 1/8" 0.06
38061
(38-061) 		1/4" x 1/4" 0.08
38062
(38-062) 		3/8" x 1/8" 0.07
38063
(38-063) 		3/8" x 1/4" 0.10
38064
(38-064) 		3/8" x 3/8" 0.14
38065
(38-065) 		1/2" x 3/8" 0.16
38066
(38-066) 		1/2" x 1/2" 0.20
38067
(38-067) 		5/8" x 3/8" 0.28
38068
(38-068) 		5/8" x 1/2" 0.28
38059 3/4" x 1/2" 0.31

Dimension data can change without notice.

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 5/8in Tube Compression
  • 1/2in Female NPT
Material(s):
  • Brass
