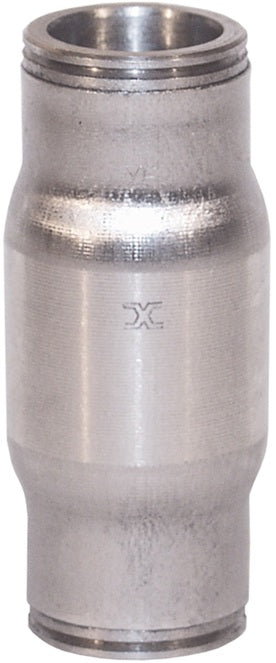

38066000 by Dixon Valve | Legris Push-In Fitting | Union | 3/8" Tube OD x 3/8" Tube OD | Stainless Steel

38066000 by Dixon Valve | Legris Push-In Fitting | Union | 3/8" Tube OD x 3/8" Tube OD | Stainless Steel

Sale price$122.97

Dixon Valve & Coupling
Legris Push-In Fitting | Union | Tube End x Tube End

Suitable for many industries such as: medical, chemical transfer, pharmaceutical, petrochemicals, paper industry, food processing.
Buy More, Save More!
Quantity Price Each
5–19 $115.59
20–59 $104.52
60+ $92.23
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Legris
Shape:

Straight

Ends Configuration:
  • 3/8in Push-to-Connect
  • 3/8in Push-to-Connect
  • Some Ends Match
Compatible with a Range of Tubes:
  • Semi-rigid nylon tube
  • Flexible polyurethane tube
  • Low density polyethylene
  • PTFE tube FEP 140
  • Stainless steel and copper tube (when grooved)
Features:
  • Internal hex allows ease of assembly in tight places.
Construction:
  • AISI 316 stainless steel body with 316L stainless steel backup washer and 303L stainless steel collet.
  • Silicone free.
  • FKM O-ring.
Specifications:
  • Temperature range: -13°F to 302°F (-25°C to 150°C)
  • Maximum operating pressure: 435 PSI (30 bar)
  • Vacuum capability: 28" HG
Approvals:
  • Materials conforming to FDA and 1934/2004 CE standards.
Safety Notes:
  • Maximum circuit pressure depends equally on the type and diameter of the tube used.
  • Thread sealant does not come pre-applied on male threads, allowing the appropriate sealant for the application to be applied by the user.
Part Number Tube O.D.
38065600 1/4"
38066000 3/8"
38066200 1/2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
