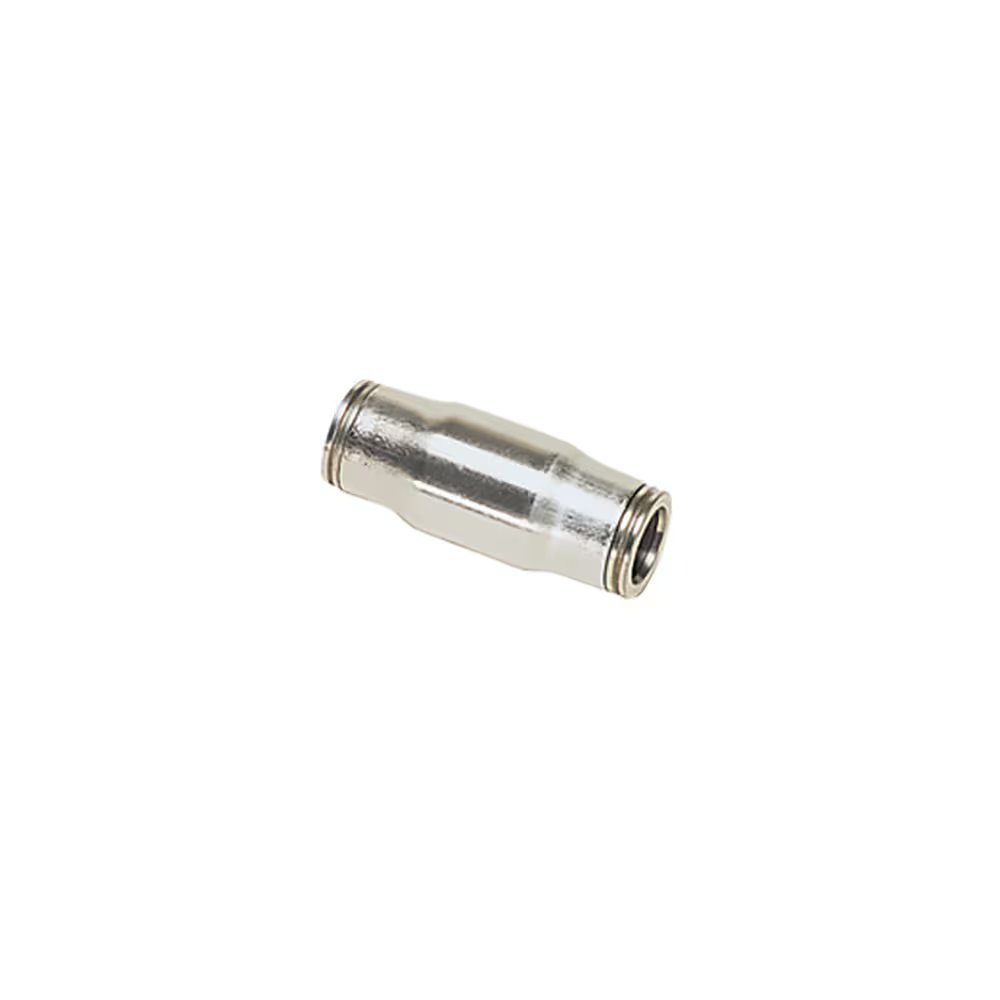

3806 56 00 by Parker | Legris Tube-to-Tube Fitting | 1/4" Tube Size | 36 mm Length | Straight | 316L Stainless Steel | Pack of 5

3806 56 00 by Parker | Legris Tube-to-Tube Fitting | 1/4" Tube Size | 36 mm Length | Straight | 316L Stainless Steel | Pack of 5

Sale price$355.50

by Parker Hannifin
LF 3800 Push-In Fittings / Tube-to-Tube Fittings:3806 Equal Tube-to-Tube Connector

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–14 $334.17
15–29 $302.18
30+ $266.63
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3806 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD C L Kg
3806 55 00 3/16" 11 mm 31 mm .010 Kg
3806 56 00 1/4" 12 mm 36 mm .015 Kg
3806 60 00 3/8" 17 mm 47 mm .030 Kg
3806 62 00 1/2" 20 mm 48 mm .039 Kg
