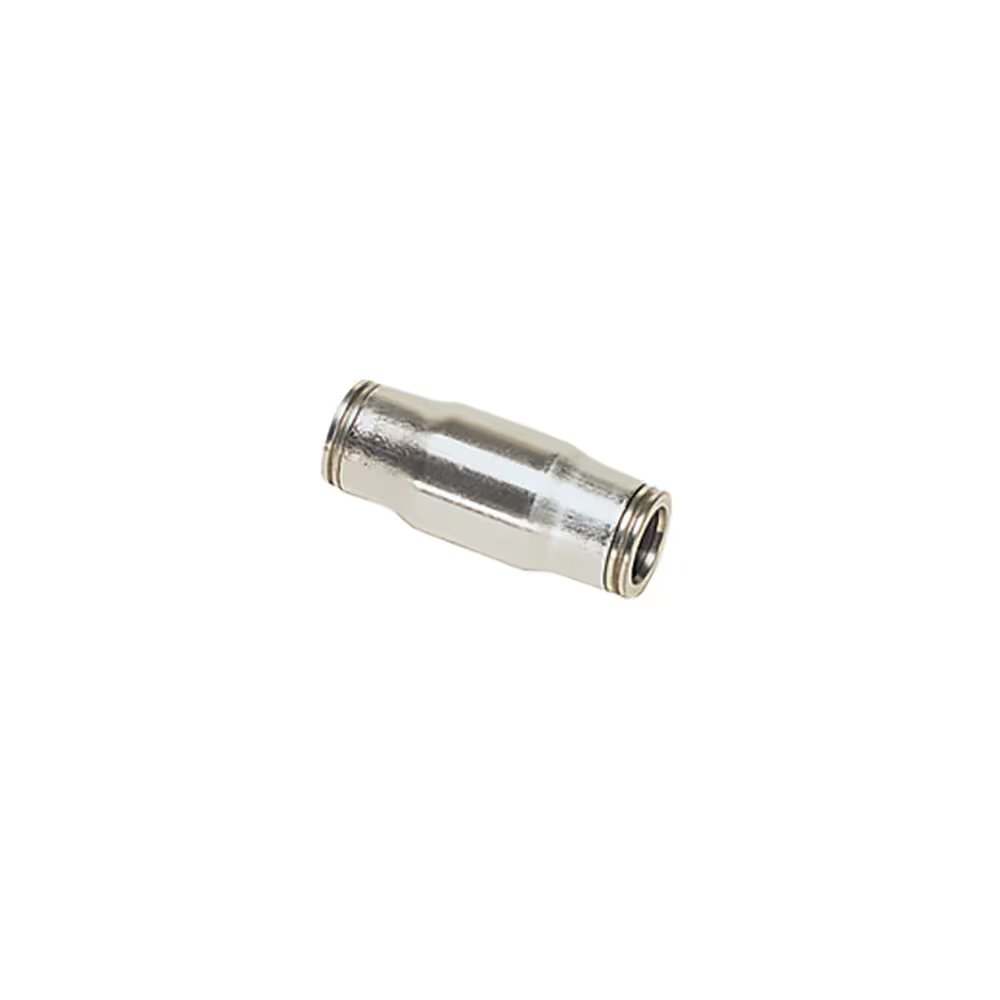

3806 12 00 by Parker | Legris Tube-to-Tube Fitting | 12 mm Tube Size | 46.5 mm Length | Straight | 316L Stainless Steel | Pack of 2

3806 12 00 by Parker | Legris Tube-to-Tube Fitting | 12 mm Tube Size | 46.5 mm Length | Straight | 316L Stainless Steel | Pack of 2

Sale price$207.29

by Parker Hannifin
LF 3800 Push-In Fittings / Tube-to-Tube Fittings:3806 Equal Tube-to-Tube Connector

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $194.85
30–59 $176.20
60+ $155.47
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3806 Series
Shape:

Straight

Ends Configuration:
  • 12mm Push-to-Connect
  • 12mm Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD C L Kg
3806 04 00 4 mm 10 mm 29 mm .009 Kg
3806 06 00 6 mm 12 mm 34 mm .015 Kg
3806 08 00 8 mm 15 mm 36 mm .019 Kg
3806 10 00 10 mm 17.5 mm 45 mm .032 Kg
3806 12 00 12 mm 20 mm 46.5 mm .040 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
