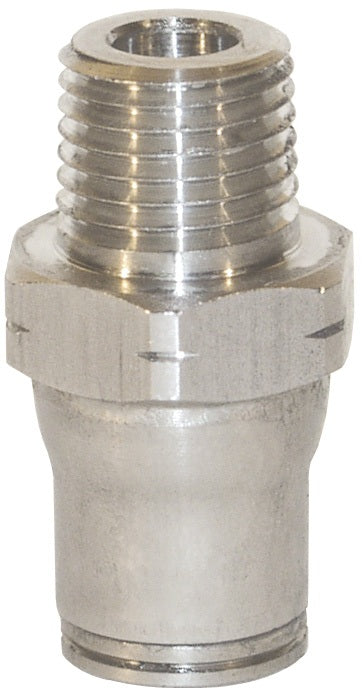

38055614 by Dixon Valve | Legris Push-In Fitting | Straight Male Connector | 1/4" Tube OD x 1/4" Male NPT | Stainless Steel

38055614 by Dixon Valve | Legris Push-In Fitting | Straight Male Connector | 1/4" Tube OD x 1/4" Male NPT | Stainless Steel

Sale price$94.81

Dixon Valve & Coupling
Legris Push-In Fitting | Straight Male Connector | Tube End x Male NPT

Suitable for many industries such as: medical, chemical transfer, pharmaceutical, petrochemicals, paper industry, food processing.
Buy More, Save More!
Quantity Price Each
5–19 $89.12
20–59 $80.59
60+ $71.11
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Legris
Shape:

Straight

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Male NPT
Compatible with a Range of Tubes:
  • Semi-rigid nylon tube
  • Flexible polyurethane tube
  • Low density polyethylene
  • PTFE tube FEP 140
  • Stainless steel and copper tube (when grooved)
Features:
  • Internal hex allows ease of assembly in tight places.
Construction:
  • AISI 316 stainless steel body with 316L stainless steel backup washer and 303L stainless steel collet.
  • Silicone free.
  • FKM O-ring.
Specifications:
  • Temperature range: -13°F to 302°F (-25°C to 150°C)
  • Maximum operating pressure: 435 PSI (30 bar)
  • Vacuum capability: 28" HG
Approvals:
  • Materials conforming to FDA and 1934/2004 CE standards.
Safety Notes:
  • Maximum circuit pressure depends equally on the type and diameter of the tube used.
  • Thread sealant does not come pre-applied on male threads, allowing the appropriate sealant for the application to be applied by the user.
Part Number Tube O.D. Male NPT
38055611 1/4" 1/8"
38055614 1/4" 1/4"
38056014 3/8" 1/4"
38056018 3/8" 3/8"
38056218 1/2" 3/8"
38056222 1/2" 1/2"
