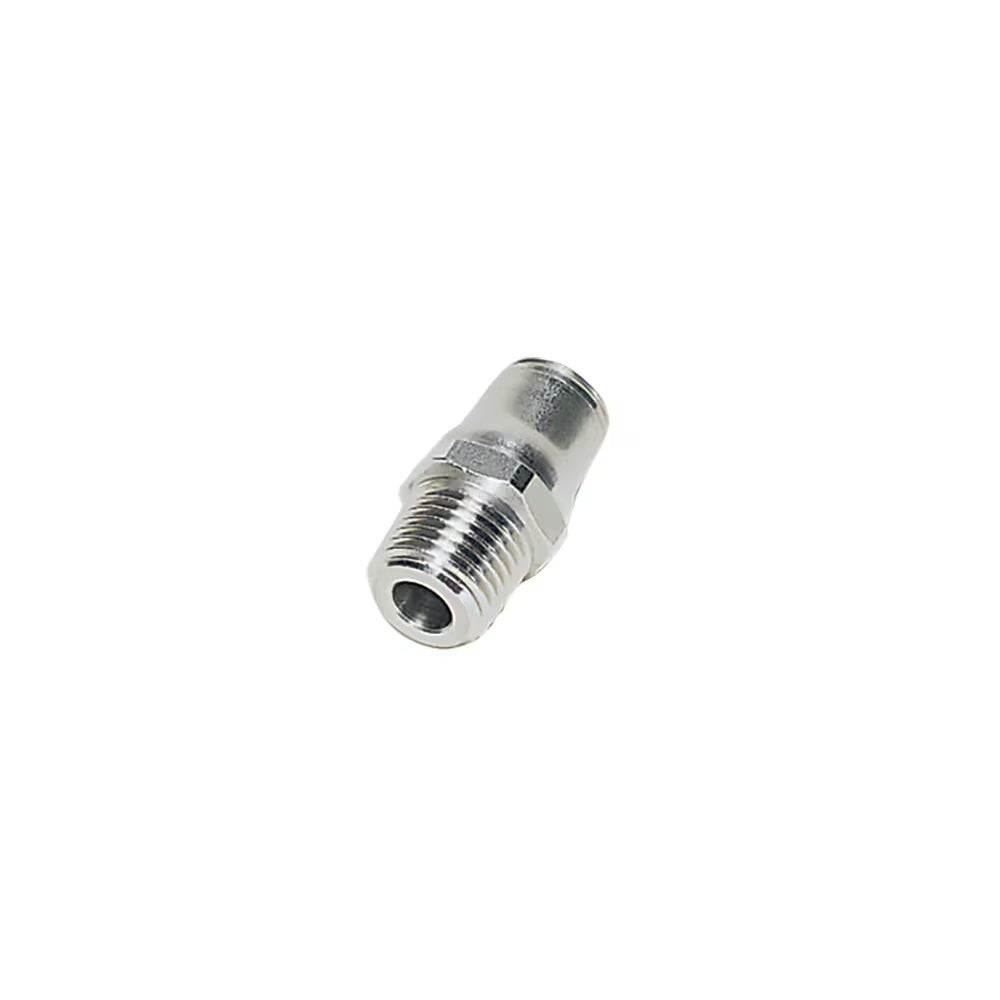

3805 62 22 by Parker | Legris Stud Fitting | 1/2" Tube Size x 1/2" Male NPT Thread | 22 mm Hex | Straight | 316L Stainless Steel | Pack of 5
by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3805 Stud Fitting, Male NPT Thread
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $544.92 |
| 15–29 | $492.75 |
| 30+ | $434.78 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ØD | C | F | F1 | H | Kg |
| 3805 55 11 | 3/16" | 1/8" | 10 mm | 3 mm | 15.5 mm | .010 Kg |
| 3805 56 11 | 1/4" | 1/8" | 13 mm | 4 mm | 19 mm | .012 Kg |
| 3805 56 14 | 1/4" | 1/4" | 14 mm | 4 mm | 17.5 mm | .017 Kg |
| 3805 60 14 | 3/8" | 1/4" | 19 mm | 6 mm | 25 mm | .029 Kg |
| 3805 60 18 | 3/8" | 3/8" | 19 mm | 7 mm | 24 mm | .031 Kg |
| 3805 62 14 | 1/2" | 1/4" | 22 mm | 7 mm | 26 mm | .036 Kg |
| 3805 62 18 | 1/2" | 3/8" | 22 mm | 8 mm | 25 mm | .041 Kg |
| 3805 62 22 | 1/2" | 1/2" | 22 mm | 10 mm | 25 mm | .049 Kg |
