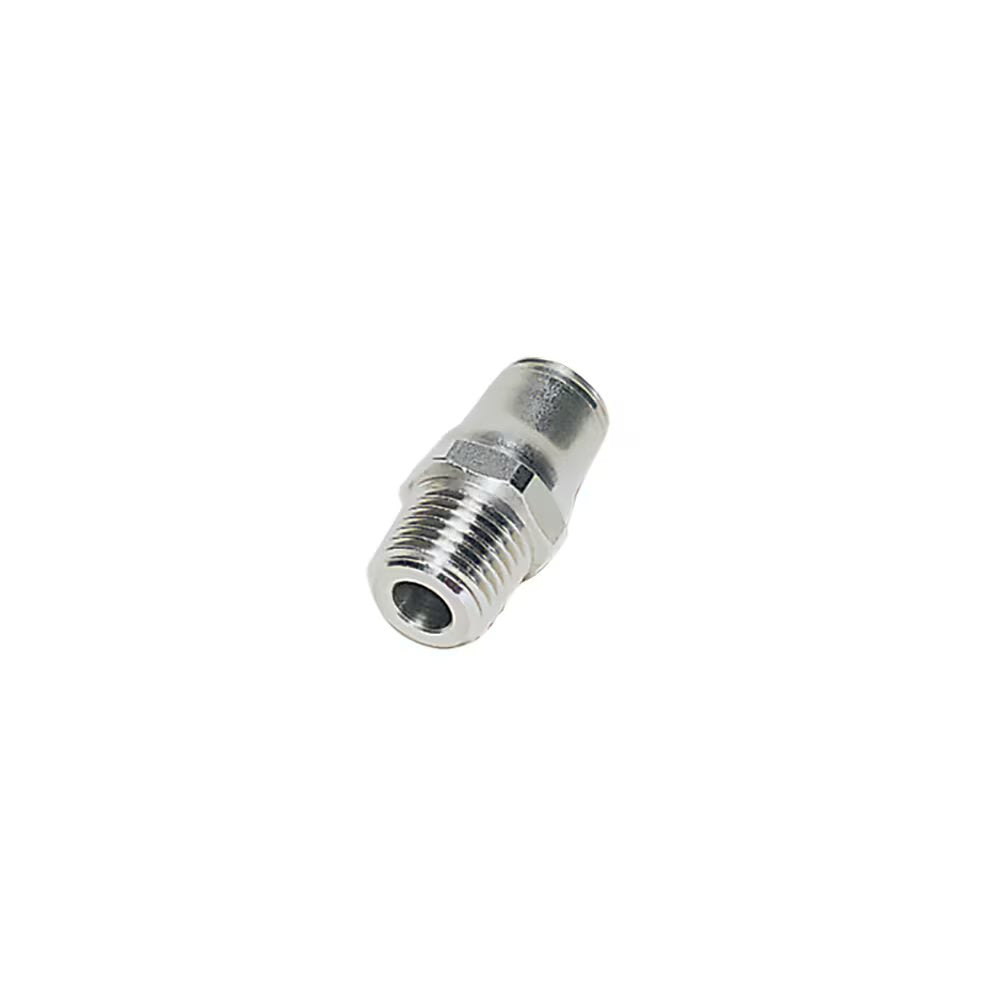

3805 08 11 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/8" Male NPT Thread | 15 mm Hex | Straight | 316L Stainless Steel | Pack of 5
by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3805 Stud Fitting, Male NPT Thread
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $313.41 |
| 15–29 | $283.41 |
| 30+ | $250.07 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ØD | C | F | F1 | H | Kg |
| 3805 04 11 | 4 mm | 1/8" | 11 mm | 3 mm | 14.5 mm | .009 Kg |
| 3805 06 11 | 6 mm | 1/8" | 13 mm | 4 mm | 18 mm | .012 Kg |
| 3805 06 14 | 6 mm | 1/4" | 14 mm | 4 mm | 16.5 mm | .017 Kg |
| 3805 08 11 | 8 mm | 1/8" | 15 mm | 5 mm | 19 mm | .015 Kg |
| 3805 08 14 | 8 mm | 1/4" | 15 mm | 6 mm | 18 mm | .018 Kg |
| 3805 10 14 | 10 mm | 1/4" | 19 mm | 6 mm | 24 mm | .028 Kg |
| 3805 10 18 | 10 mm | 3/8" | 19 mm | 7 mm | 22.5 mm | .031 Kg |
| 3805 12 14 | 12 mm | 1/4" | 22 mm | 7 mm | 25 mm | .034 Kg |
| 3805 12 18 | 12 mm | 3/8" | 22 mm | 8 mm | 24 mm | .039 Kg |
| 3805 12 22 | 12 mm | 1/2" | 22 mm | 10 mm | 23 mm | .045 Kg |
