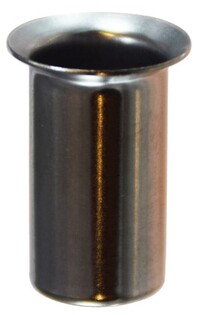

38038 by Midland | DOT Air Brake Fitting | Nylon Tubing | Insert | 5/8" Tube OD | Stainless Steel
Minimum Order Quantity: 5 Units
Buy more, save moreDiscounts applied in cart/checkout.
SPECIFICATIONS
| Applications: | Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing. | Used With: | NT Nylon Tubing - SAE J844 Type A and B. |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets specifications and standards of SAE and DOT FMVSS 571,106. |
| Vibration: | Fair Resistance. | Temperature Range: | -40°F to +200°F (-40°C to +93°C) |
| Tolerance: | +/- .02 on all dimensions | Pressure: | Maximum operating pressure of 150 PSI |
| Tube OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" |
|---|---|---|---|---|---|
| Thread Size - B | 7/16-24 | 17/32-24 | 11/16-20 | 13/16-18 | 1-18 |
| Assembly Instructions: | |||
|---|---|---|---|
|
| Crossover Series: | |||
|---|---|---|---|
| AQ71DOTS | DQ71S | 59A | 63NTA |
| Part Number | Tube OD | Approx. Weight (Lbs.) |
|---|---|---|
| 38035 (38-035) |
1/4" | 0.01 |
| 38036 (38-036) |
3/8" | 0.01 |
| 38037 (38-037) |
1/2" | 0.01 |
| 38038 (38-038) |
5/8" | 0.01 |
| 38039 (38-039) |
3/4" | 0.01 |
Dimension data can change without notice.
Additional Product Data:
Shape:
No Orientation
Material(s):
Specifications and Approvals:
