38035 by Midland | DOT Air Brake Fitting | Nylon Tubing | Insert | 1/4" Tube OD | Stainless Steel
Midland Industries

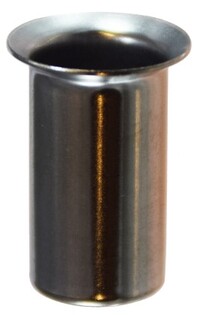

Brass Fitting - D.O.T. Air Brake Fitting (Nylon Tubing) - Insert - 300 Series Stainless Steel
For SAE# J844 Tubing
Easy to assemble (no tube preparation or flaring required.) Built in tube support. Fittings utilize a ribbed sleeve for compression and positive grip. May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve. Insert should be removed for copper tubing use.
Product Data:
Shape:
["No Orientation"]
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing. | Used With: | NT Nylon Tubing - SAE J844 Type A and B. |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets specifications and standards of SAE and DOT FMVSS 571,106. |
| Vibration: | Fair Resistance. | Temperature Range: | -40°F to +200°F (-40°C to +93°C) |
| Tolerance: | +/- .02 on all dimensions | Pressure: | Maximum operating pressure of 150 PSI |
| Tube OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" |
|---|---|---|---|---|---|
| Thread Size - B | 7/16-24 | 17/32-24 | 11/16-20 | 13/16-18 | 1-18 |
| Assembly Instructions: | |||
|---|---|---|---|
|
| Crossover Series: | |||
|---|---|---|---|
| AQ71DOTS | DQ71S | 59A | 63NTA |
| Part Number | Tube OD | Approx. Weight (Lbs.) |
|---|---|---|
| 38035 (38-035) |
1/4" | 0.01 |
| 38036 (38-036) |
3/8" | 0.01 |
| 38037 (38-037) |
1/2" | 0.01 |
| 38038 (38-038) |
5/8" | 0.01 |
| 38039 (38-039) |
3/4" | 0.01 |
Dimension data can change without notice.
