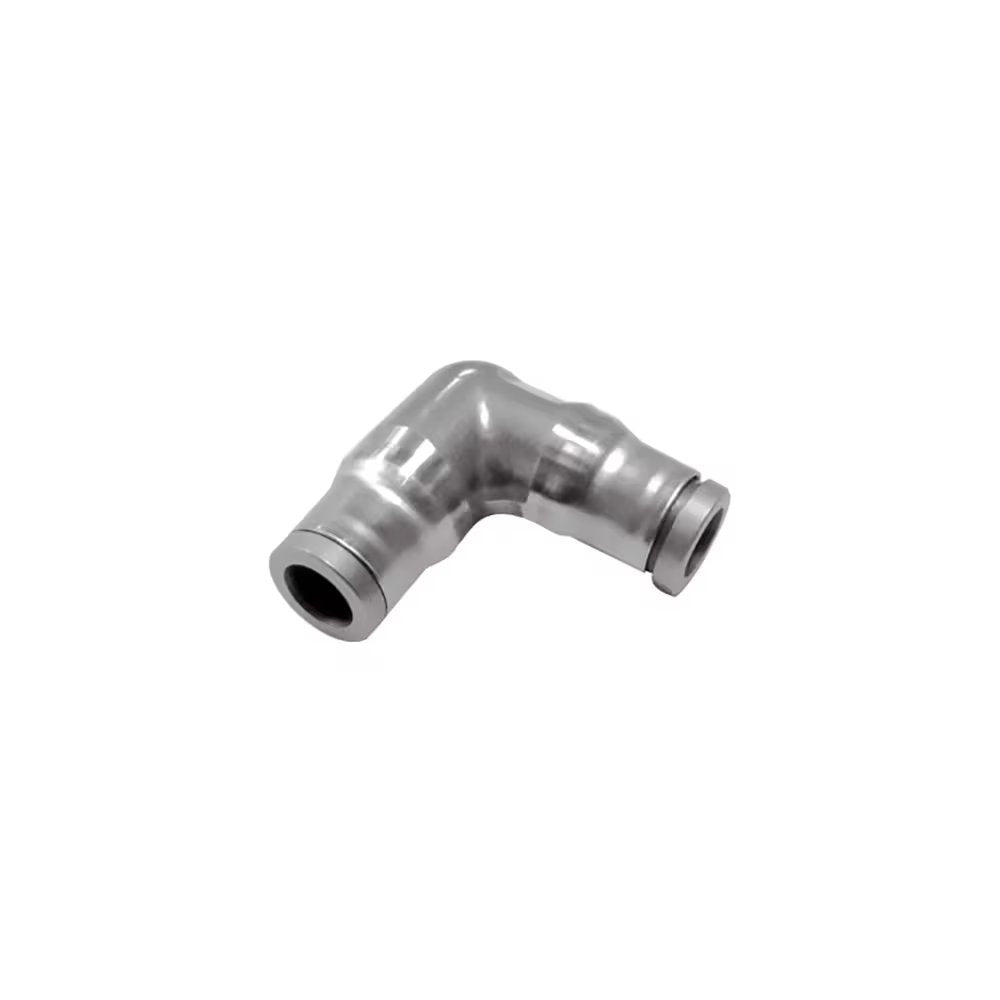

3802 60 00 by Parker | Legris Tube-to-Tube Fitting | 3/8" Tube Size | 38 mm Length | 90° Elbow | 316L Stainless Steel | Pack of 5

3802 60 00 by Parker | Legris Tube-to-Tube Fitting | 3/8" Tube Size | 38 mm Length | 90° Elbow | 316L Stainless Steel | Pack of 5

Sale price$906.15

Package Quantity: 5 Units

Buy more, save moreDiscounts applied in cart/checkout.
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD C L Kg
3802 56 00 1/4" 12 mm 29 mm .023 Kg
3802 60 00 3/8" 17 mm 38 mm .047 Kg
3802 62 00 1/2" 20 mm 43 mm .071 Kg

Additional Product Data:

Series:
  • 3802 Series
Shape:

90° Elbow

Ends Configuration:
  • 3/8in Push-to-Connect
  • 3/8in Push-to-Connect
  • Some Ends Match

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
