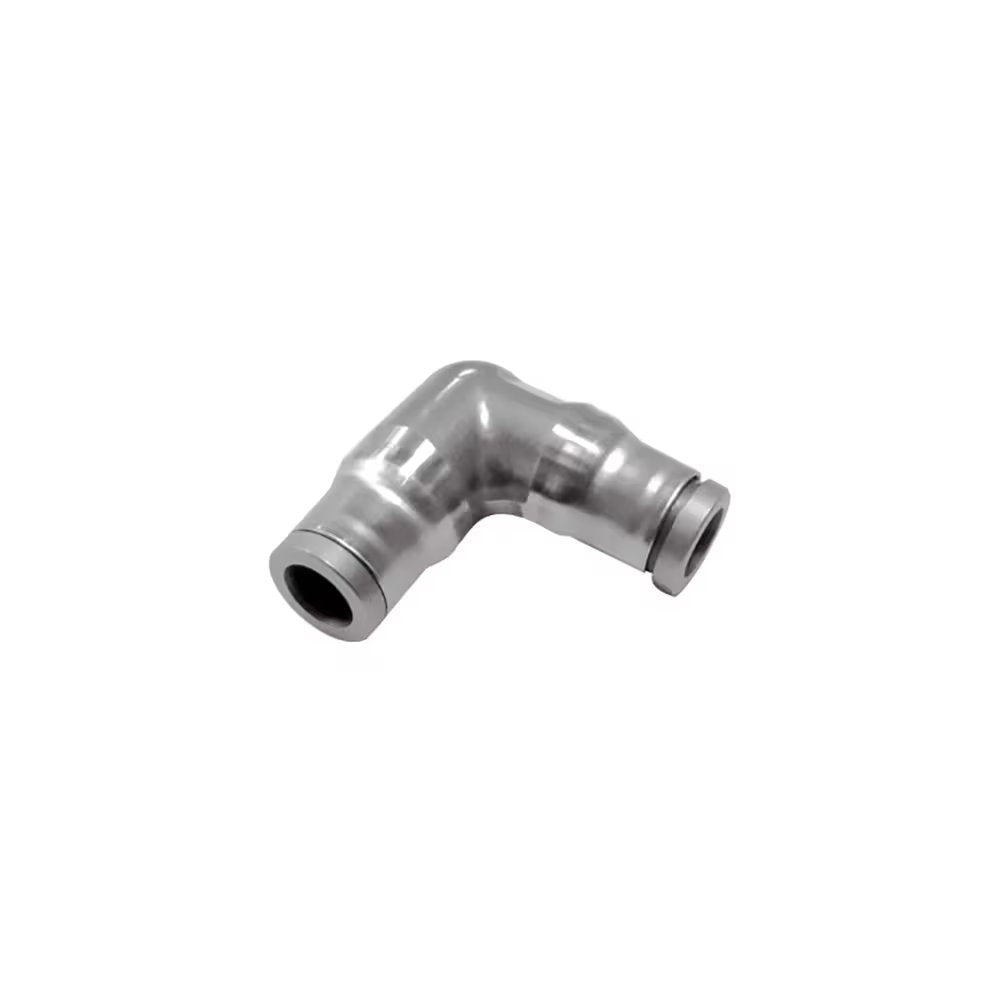

3802 12 00 by Parker | Legris Tube-to-Tube Fitting | 12 mm Tube Size | 40 mm Length | 90° Elbow | 316L Stainless Steel | Pack of 2

3802 12 00 by Parker | Legris Tube-to-Tube Fitting | 12 mm Tube Size | 40 mm Length | 90° Elbow | 316L Stainless Steel | Pack of 2

Sale price$247.17

by Parker Hannifin
LF 3800 Push-In Fittings / Tube-to-Tube Fittings:3802 Equal Elbow

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $232.34
30–59 $210.09
60+ $185.38
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3802 Series
Shape:

90° Elbow

Ends Configuration:
  • 12mm Push-to-Connect
  • 12mm Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD C L Kg
3802 04 00 4 mm 10 mm 21.5 mm .015 Kg
3802 06 00 6 mm 12 mm 26.5 mm .024 Kg
3802 08 00 8 mm 15 mm 29.5 mm .031 Kg
3802 10 00 10 mm 17.5 mm 36.5 mm .050 Kg
3802 12 00 12 mm 20 mm 40 mm .071 Kg
