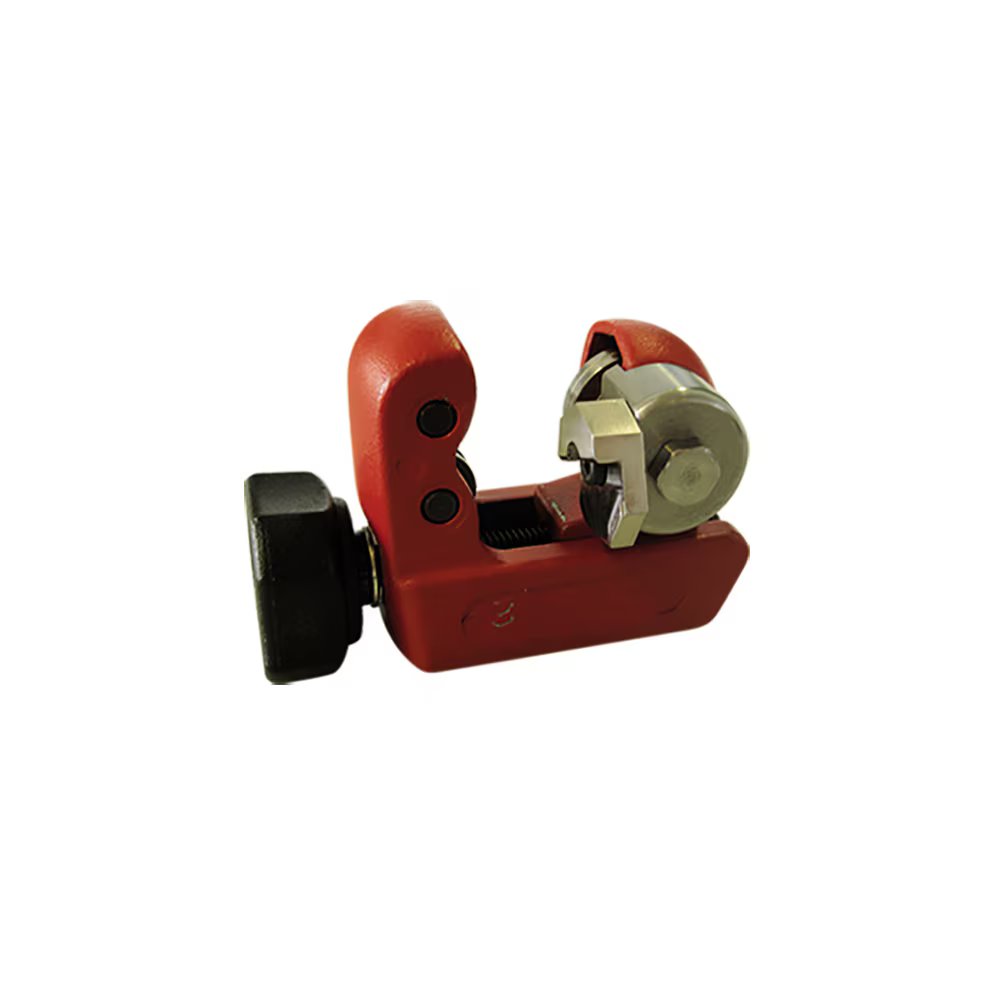

3800 70 00 by Parker | Legris Pre-Grooving Tool for Metallic Tubing | 4-12 mm O.D. and 3/16”-1/2” O.D. Stainless Steel Tubing | 70 mm Length | 316L Stainless Steel

3800 70 00 by Parker | Legris Pre-Grooving Tool for Metallic Tubing | 4-12 mm O.D. and 3/16”-1/2” O.D. Stainless Steel Tubing | 70 mm Length | 316L Stainless Steel

Sale price$899.97

by Parker Hannifin
LF 3800 Push-In Fittings:3800 Pre-Grooving Tool for Metallic Tubing
Buy More, Save More!
Quantity Price Each
5–14 $845.97
15–29 $764.97
30+ $674.98
Discounts applied in cart/checkout.

Product Data:

Shape:

No Orientation

Material(s):
  • 316L Stainless Steel
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number G H H1 K L Kg
3800 70 00 25 mm 51 mm 13 mm 36 mm 70 mm .326 Kg

This tool correctly pre-grooves 4-12 mm O.D. and 3/16”-1/2” O.D. stainless steel tubing, to ensure that the LF 3800 collet grips the tube securely
